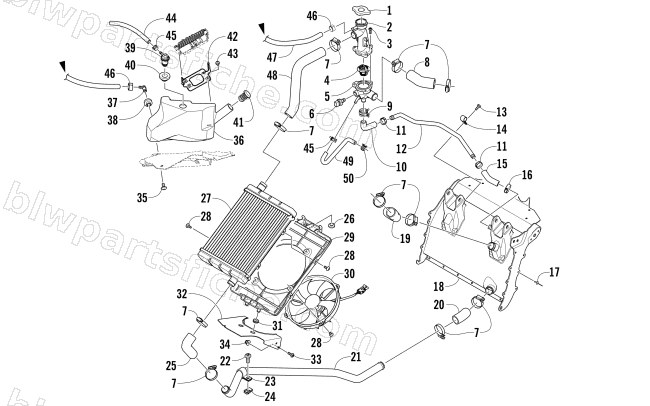

COOLING ASSEMBLY
2016 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 2 | 0613-080 | NECK,FILLER-COOLANT | 1 | $12.35 | |
| 3 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 4 | 0613-078 | THERMOSTAT-71 | 1 | $66.95 | |
| 5 | 0713-160 | HOUSING,THERMOSTAT-ASSY | 1 | $77.95 | |
| 6 | 0824-051 | SENSOR,COOLANT TEMP (SYNERJECT) | 1 | $19.25 | |
| 7 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 8 | 0610-884 | HOSE,COOLANT-ENGINE/THERMOSTAT | 1 | $16.49 | |
| 9 | 1623-282 | CLAMP,HOSE-SPRING (12W X 19) | 1 | $4.26 | |
| 10 | 0613-141 | HOSE,COOLANT BYPASS-THERMOSTAT | 1 | $4.40 | |
| 11 | 0610-993 | CLAMP,HOSE-16.6MM TO 19.8MM | 1 | $3.44 | |
| 12 | 0613-139 | TUBE,COOLANT BYPASS | 1 | $19.25 | |
| 13 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 14 | 2623-083 | CLAMP,WIRE-.500IN-VINYL COATED | 1 | $1.50 | |
| 15 | 0613-140 | HOSE,COOLANT BYPASS-HEAT EXCH | 1 | $3.57 | |
| 16 | 2623-062 | CLAMP,HOSE-12/20 (NORMA) | 1 | $3.02 | |
| 17 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 18 | 0713-137 | EXCH,FRT HEAT-W/BRACE-WELDT | 1 | $553.95 | |
| 19 | 0610-885 | HOSE,COOLANT-ENGINE/FRT EXCH | 1 | $17.87 | |
| 20 | 0610-909 | HOSE,COOLANT-ELBOW-35° | 1 | $12.35 | |
| 21 | 0613-090 | TUBE,COOLANT-EXCH/RADIATOR-FORMED | 1 | $29.95 | |
| 22 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 23 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 24 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 25 | 0610-906 | HOSE,COOLANT-87 DEG ELBOW | 1 | $15.11 | |
| 26 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 27 | 0613-074 | RADIATOR CORE-ASSY | 1 | $465.95 | |
| 28 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 29 | 0613-095 | SHROUD,FAN-RADIATOR | 1 | $61.95 | |
| 30 | 0613-075 | FAN,RADIATOR-7.5 PULL | 1 | $209.95 | |
| 31 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 32 | 0613-094 | BRKT,MOUNTING-RADIATOR | 1 | $19.25 | |
| 33 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 34 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 35 | 8477-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&BLK | 1 | $1.09 | |
| 36 | 0613-155 | TANK,COOLANT-OVERFLOW | 1 | $113.95 | |
| 37 | 2670-430 | FITTING,ELBOW-90°-5/16 BARB | 1 | $5.09 | |
| 38 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 39 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 40 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 41 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 42 | 0645-653 | BRACKET,PDM | 1 | $20.63 | |
| 43 | 8408-512 | SCREW,CAP-HFH M5X0.8X12 CL8.8 Z&Y | 1 | $3.02 | |
| 44 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 45 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 46 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 47 | 0610-970 | HOSE,COOLANT-5/16X.510-25FT | 1 | $69.95 | |
| 48 | 0610-882 | HOSE,COOLANT-RADIATOR/THERMOSTAT | 1 | $20.63 | |
| 49 | 0610-887 | HOSE,COOLANT-BYPASS-ENGINE/THERMOSTAT | 1 | $8.21 | |
| 50 | 1623-277 | CLAMP,HOSE-SPRING (12W X 14) | 1 | $4.26 |
