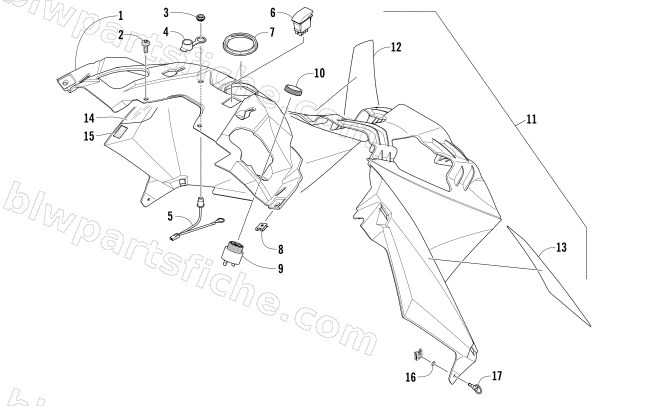

CONSOLE ASSEMBLY
2016 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-870 | CONSOLE,4 STROKE-BLK-ROUTED | 1 | $79.95 | |
| 2 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 3 | 0609-944 | NUT,RETAINING-OUTLET | 1 | $3.16 | |
| 4 | 0609-945 | COVER,OUTLET-SHIELD | 1 | $2.47 | |
| 5 | 0609-940 | OUTLET,HEATED SHIELD | 1 | $34.95 | |
| 6 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 7 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 | |
| 8 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 9 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 10 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 11 | 4718-454 | CONSOLE,LWR-BLK-W/DECALS | 1 | $180.95 | |
| 12 | 9611-499 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 13 | 9611-498 | DECAL,WARNING-FRENCH | 1 | $13.73 | |
| 14 | 6606-812 | R/B 3612-321 | 1 | $2.95 | |
| 15 | 6990-323 | VELCRO,2IN WIDE X 3FT LOOP-W/PSA | 1 | $45.95 | |
| 16 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 17 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 |
