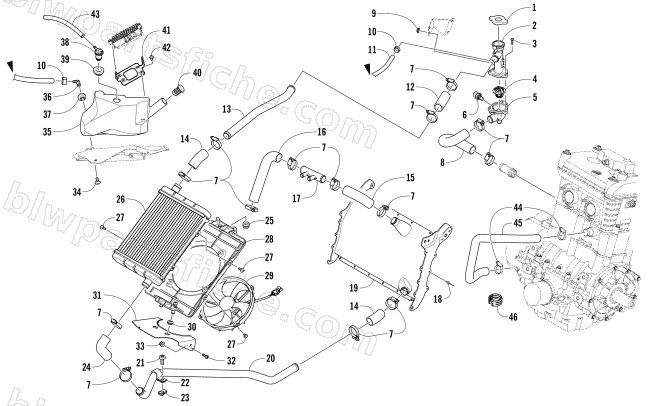

COOLING ASSEMBLY
2016 PANTERA 3000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 2 | 0613-080 | NECK,FILLER-COOLANT | 1 | $12.35 | |
| 3 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 6 | 0824-051 | SENSOR,COOLANT TEMP (SYNERJECT) | 1 | $19.25 | |
| 7 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 9 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 10 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 11 | 0610-970 | HOSE,COOLANT-5/16X.510-25FT | 1 | $69.95 | |
| 12 | 0610-840 | HOSE,25.4mm DIA X 75mm-SAE J30 | 1 | $12.35 | |
| 14 | 0610-909 | HOSE,COOLANT-ELBOW-35° | 1 | $12.35 | |
| 15 | 0610-865 | HOSE,COOLANT-THERMO/TUBE | 1 | $12.35 | |
| 18 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 0613-090 | TUBE,COOLANT-EXCH/RADIATOR-FORMED | 1 | $29.95 | |
| 21 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 22 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 23 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 24 | 0610-906 | HOSE,COOLANT-87 DEG ELBOW | 1 | $15.11 | |
| 25 | 2623-123 | GROMMET, RUBBER - 5.4 ID X 8.75 THK | 1 | $4.95 | |
| 26 | 0613-074 | RADIATOR CORE-ASSY | 1 | $465.95 | |
| 27 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 28 | 0613-095 | SHROUD,FAN-RADIATOR | 1 | $61.95 | |
| 29 | 0613-075 | FAN,RADIATOR-7.5 PULL | 1 | $209.95 | |
| 30 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 31 | 0613-094 | BRKT,MOUNTING-RADIATOR | 1 | $19.25 | |
| 32 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 33 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 34 | 8477-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&BLK | 1 | $1.09 | |
| 35 | 0613-155 | TANK,COOLANT-OVERFLOW | 1 | $113.95 | |
| 36 | 2670-430 | FITTING,ELBOW-90°-5/16 BARB | 1 | $5.09 | |
| 37 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 38 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 39 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 40 | 0413-087 | STOPPER,COOLANT | 1 | $4.54 | |
| 41 | 0645-653 | BRACKET,PDM | 1 | $20.63 | |
| 42 | 8408-512 | SCREW,CAP-HFH M5X0.8X12 CL8.8 Z&Y | 1 | $3.02 | |
| 43 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 44 | 1623-182 | CLAMP, INERCOOLER-SMALL | 1 | $4.40 | |
| 46 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 |
