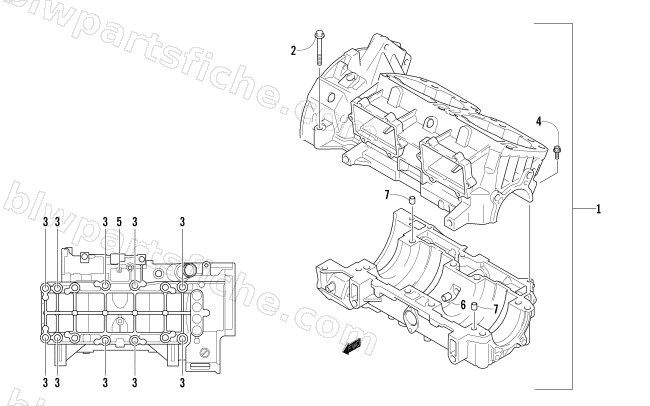

CRANKCASE ASSEMBLY
2016 M 8000 LTD 162 ES
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-520 | GASKET SET,ENGINE-800 (COMPLETE) | 1 | $517.95 | |
| 1 | 3007-876 | CRANKCASE ASSY. | 1 | $1,473.95 | |
| 2 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 3 | 3006-488 | BOLT,10X87 | 1 | $5.65 | |
| 4 | 3007-445 | BOLT | 1 | $2.75 | |
| 5 | 3007-527 | BOLT | 1 | $5.09 | |
| 6 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 7 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 |
