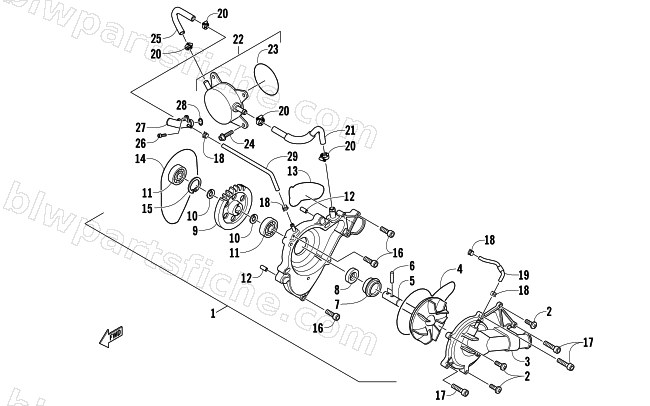

WATER PUMP ASSEMBLY
2016 M 7000 SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-300 | PUMP,WATER-ASSEMBLY | 1 | $437.95 | |
| 2 | 3020-301 | SCREW,MACHINE-PPH | 1 | $3.16 | |
| 3 | 3020-302 | COVER, HOUSING | 1 | $60.95 | |
| 4 | 3020-303 | SEAL, HOUSING COVER | 1 | $19.25 | |
| 5 | 3020-304 | IMPELLER SHAFT ASSY | 1 | $37.95 | |
| 6 | 3020-305 | PIN, DOWEL | 1 | $2.88 | |
| 7 | 3020-306 | SEAL, MECHANICAL | 1 | $49.95 | |
| 8 | 3020-307 | OIL SEAL(SD 10-21-5 HS) | 1 | $16.49 | |
| 9 | 3020-308 | GEAR, IMPELLER SHAFT | 1 | $79.95 | |
| 10 | 3020-309 | RING, RETAINING | 1 | $2.88 | |
| 11 | 3020-310 | BEARING | 1 | $26.95 | |
| 12 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 13 | 3020-311 | SEAL | 1 | $3.57 | |
| 14 | 3020-312 | SEAL | 1 | $15.11 | |
| 15 | 3020-313 | RING,RETAINING | 1 | $2.88 | |
| 16 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 17 | 3020-315 | SCREW,CAP-HSH | 1 | $3.16 | |
| 18 | 3020-316 | CLAMP,HOSE | 1 | $6.06 | |
| 19 | 3020-317 | HOSE, COOLANT - WATER PUMP/THROTTLE BODY | 1 | $15.11 | |
| 20 | 3020-318 | CLAMP,HOSE | 1 | $8.21 | |
| 21 | 3020-319 | HOSE, COOLANT - WATER PUMP/OIL COOLER | 1 | $22.01 | |
| 22 | 3020-320 | COOLER, OIL - ASSEMBLY | 1 | $642.95 | |
| 23 | 3020-321 | O-RING | 1 | $37.95 | |
| 24 | 3020-322 | SCREW,CAP-HSH | 1 | $3.44 | |
| 25 | 3020-323 | HOSE, COOLANT - OIL COOLER/ELBOW FITTING | 1 | $15.11 | |
| 26 | 3020-167 | SCREW,CAP-HSH | 1 | $4.26 | |
| 27 | 3020-324 | FITTING,ELBOW | 1 | $69.95 | |
| 28 | 3020-325 | O-RING | 1 | $5.37 | |
| 29 | 3020-326 | HOSE, COOLANT - ELBOW FITTING/WATER PUMP | 1 | $12.35 |
