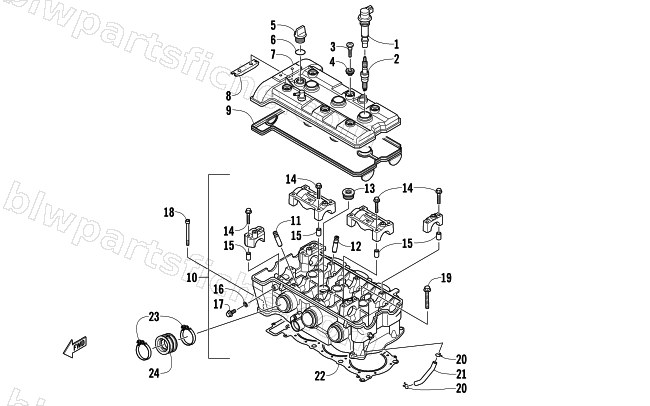

CYLINDER HEAD ASSEMBLY
2016 M 7000 SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-168 | COIL, IGNITION | 1 | $188.95 | |
| 2 | 0217-738 | SPARK PLUG-CR9E | 1 | $10.97 | |
| 3 | 3020-169 | SCREW,SHOULDER-TPH | 1 | $12.35 | |
| 4 | 3020-170 | GROMMET | 1 | $13.73 | |
| 5 | 3020-171 | PLUG | 1 | $26.95 | |
| 6 | 3020-172 | O-RING | 1 | $5.37 | |
| 7 | 3020-173 | COVER, CYLINDER HEAD | 1 | $228.95 | |
| 8 | 3020-174 | GUIDE,CHAIN | 1 | $37.95 | |
| 9 | 3020-175 | GASKET, CYLINDER COVER | 1 | $42.95 | |
| 10 | 3020-176 | HEAD,CYLINDER-ASSEMBLY | 1 | $2,150.95 | |
| 11 | 3020-177 | GUIDE, VALVE - INTAKE | 1 | $73.95 | |
| 12 | 3020-178 | GUIDE, VALVE - EXHAUST | 1 | $96.95 | |
| 13 | 3020-142 | PLUG | 1 | $5.37 | |
| 14 | 3020-179 | SCREW,CAP-HFH | 1 | $4.68 | |
| 15 | 3020-180 | PIN, DOWEL | 1 | $3.57 | |
| 16 | 3020-181 | GASKET | 1 | $4.40 | |
| 17 | 3020-182 | SCREW,CAP-HSH | 1 | $5.09 | |
| 18 | 3020-183 | SCREW,CAP-HSH | 1 | $4.68 | |
| 19 | 3020-184 | SCREW,CAP-HFH | 1 | $15.11 | |
| 20 | 3020-185 | CLAMP,HOSE | 1 | $4.40 | |
| 21 | 3020-186 | HOSE,OIL | 1 | $8.21 | |
| 22 | 3020-187 | GASKET,CYLINDER HEAD | 1 | $54.95 | |
| 23 | 3020-188 | CLAMP | 1 | $19.25 | |
| 24 | 3020-189 | BOOT,INTAKE | 1 | $26.95 |
