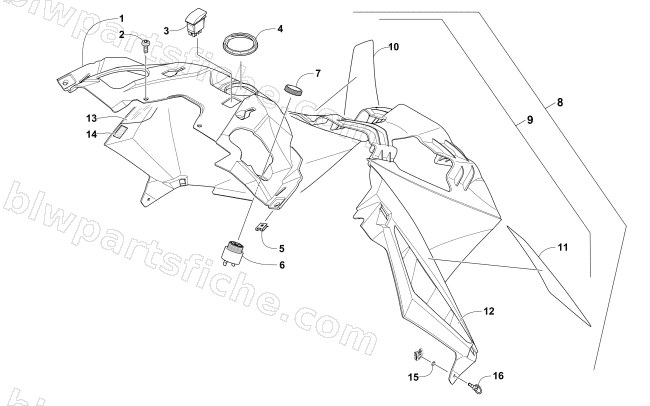

2016 Arctic Cat M 7000 LTD 162 — CONSOLE ASSEMBLY
2016 M 7000 LTD 162
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-309 | CONSOLE,4 STROKE-BLK | 1 | $79.95 | |
| 2 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 3 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 4 | 6606-390 | NUT,RETAINING-CONSOLE | 1 | $2.06 | |
| 5 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 6 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 7 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 8 | 4718-678 | CONSOLE,LWR-BLK-W/DECALS(7000 LTD BLK) | 1 | $116.95 | |
| 9 | 4718-454 | CONSOLE,LWR-BLK-W/DECALS | 1 | $180.95 | |
| 15 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 |
