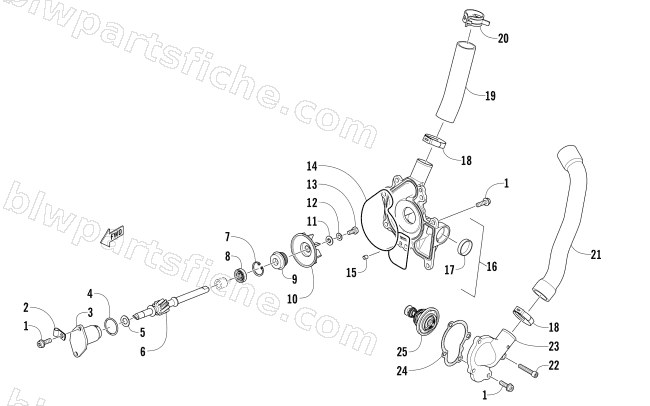

WATER PUMP AND THERMOSTAT
2016 M 6000 LTD 153 ES
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0923-025 | SCREW,CAP-TSRDWH M6X1X20 CL 10.9 | 1 | $0.54 | |
| 2 | 1623-676 | CLAMP,SPEED SENSOR | 1 | $1.50 | |
| 3 | 0913-020 | RETAINER, WATER PUMP DRIVEN SHAFT | 1 | $106.95 | |
| 4 | 0930-031 | O RING, 25.1 X 1.78-NBR | 1 | $3.44 | |
| 5 | 0923-036 | SHIM, 10 X 18 X 1 | 1 | $23.39 | |
| 7 | 0931-003 | CIRCLIP, BEARING | 1 | $1.92 | |
| 8 | 0930-004 | R/B 0930-060 | 1 | $16.95 | |
| 9 | 0930-005 | SEAL, WATER PUMP SHAFT MECHANICAL | 1 | $34.95 | |
| 10 | 0913-006 | IMPELLER,WATER PUMP/ W INSERT | 1 | $20.63 | |
| 11 | 0923-011 | WASHER,SEAL WATER PUMP SHAFT | 1 | $6.89 | |
| 12 | 0923-035 | WASHER,M6 X 12-HARDENED | 1 | $5.92 | |
| 13 | 0923-030 | SCREW, CAP-HEX HEAD M6X1.0 SS | 1 | $2.75 | |
| 14 | 0930-025 | O-RING,WATER PUMP COVER | 1 | $3.99 | |
| 15 | 0829-049 | PIN,SOLID DOWEL-M5X8 | 1 | $1.37 | |
| 16 | 1913-002 | COVER,WATER PUMP-MFG ASSY | 1 | $78.95 | |
| 17 | 0818-103 | PLUG, CYLINDER | 1 | $8.21 | |
| 18 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 19 | 0610-870 | HOSE,WATER INLET | 1 | $45.95 | |
| 20 | 1623-322 | CLAMP,HOSE-SPRING (15W X 35) | 1 | $4.26 | |
| 21 | 0613-191 | HOSE,COOLANT-TANK/ENGINE | 1 | $27.95 | |
| 22 | 0923-027 | SCREW, CAP-TSH M6X1X35 CL10.9 W/2510 | 1 | $4.26 | |
| 23 | 0913-011 | CAP,THERMOSTAT | 1 | $71.95 | |
| 24 | 0930-026 | GASKET,THERMOSTAT CAP | 1 | $20.63 | |
| 25 | 0913-022 | THERMOSTAT - 85 DEG | 1 | $99.95 |
