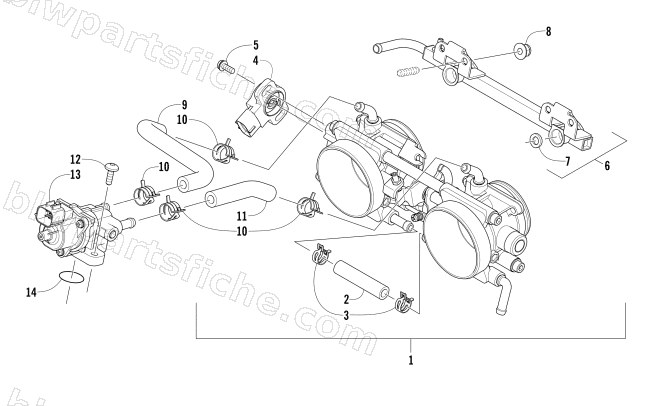

THROTTLE BODY ASSEMBLY
2016 M 6000 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0910-001 | THROTTLE BODY-47mm | 1 | $377.95 | |
| 2 | 6506-424 | HOSE | 1 | $10.97 | |
| 3 | 6506-338 | CLAMP,HOSE | 1 | $5.78 | |
| 4 | 6506-425 | SENSOR ASSY | 1 | $151.95 | |
| 5 | 6506-075 | SCREW | 1 | $3.16 | |
| 6 | 0910-007 | RAIL, FUEL | 1 | $333.95 | |
| 7 | 0930-036 | O-RING, INJECTOR BASE | 1 | $19.25 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 2670-250 | HOSE, ISC TO MAG T/B | 1 | $12.35 | |
| 10 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 11 | 2670-251 | HOSE, ISC TO PTO T/B | 1 | $1.92 | |
| 12 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 13 | 0910-004 | ISC (IDLE SPEED CONTROLLER) | 1 | $333.95 | |
| 14 | 2623-090 | O-RING 13.94mm X 2.62mm CS | 1 | $5.92 |
