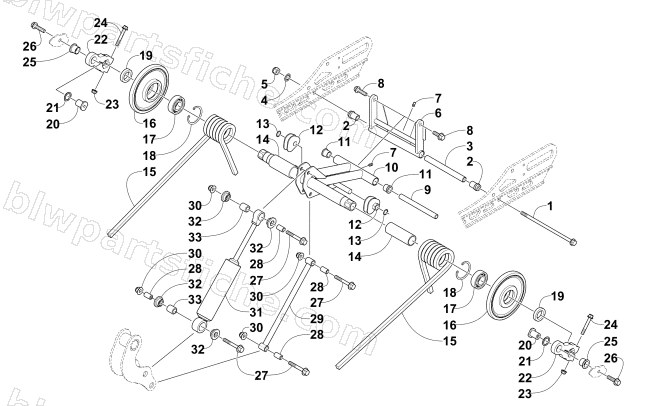

REAR SUSPENSION REAR ARM ASSEMBLY
2016 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 2 | 3604-286 | BUSHING,REAR ARM-PWD METAL | 1 | $5.92 | |
| 3 | 3604-285 | AXLE,REAR ARM-INNER-M10X155.5 | 1 | $16.49 | |
| 4 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 5 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 1704-624 | ARM,REAR-FABR | 1 | $68.95 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 9 | 3604-276 | AXLE,IDLER-LWR M10 X 173.15 | 1 | $34.95 | |
| 10 | 1704-619 | ARM,IDLER-HEX-FABR | 1 | $228.95 | |
| 11 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 12 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 12 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 13 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 14 | 3604-288 | SLEEVE,SPRING-108mm | 1 | $3.44 | |
| 15 | 1704-504 | SPRING,SUSPENSION-RH-18.5 LB-PTD BLK | 1 | $112.95 | |
| 15 | 1704-505 | SPRING,SUSPENSION-LH-18.5 LB- PTD BLK | 1 | $112.95 | |
| 16 | 3604-553 | WHEEL,IDLER-5.63(NO INSERT/30MM BEARING) | 1 | $53.95 | |
| 17 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 18 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 19 | 3604-289 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $2.06 | |
| 20 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 21 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 22 | 1704-627 | OFFSET ARM,FLANGE-HEX ASSY | 1 | $54.95 | |
| 23 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 24 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 25 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 26 | 8408-031 | SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353 | 1 | $2.06 | |
| 27 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 28 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 29 | 1704-686 | LINK,REAR SHOCK-MACH | 1 | $44.95 | |
| 30 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 31 | 1704-633 | SHOCK, REAR ARM-15.00"-GABRIEL | 1 | $172.95 | |
| 32 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 33 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 |
