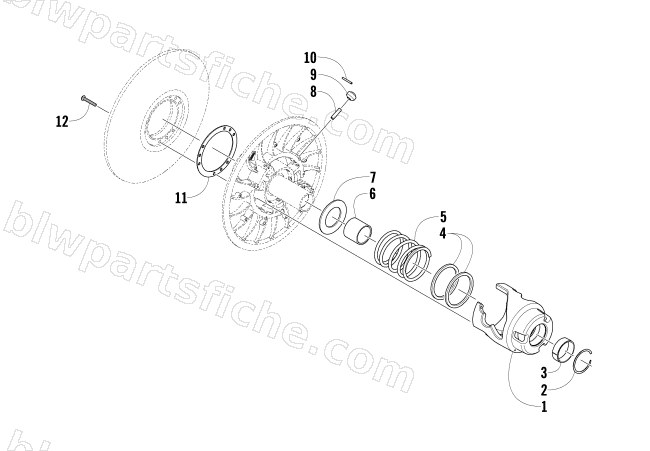

DRIVEN CLUTCH
2016 LYNX 2000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-311 | CLUTCH,DRIVEN-10.4(44/40N ORN) | 1 | $735.95 | |
| 1 | 0748-714 | CAM,DRIVEN-44/40 DEG (N) W/BRG-ASSY | 1 | $249.95 | |
| 1 | 0748-700 | CAM,DRIVEN-36 DEG (N) W/BRG-ASSY | 1 | $209.95 | |
| 2 | 0648-433 | RING,SNAP-1 3/4 VH175 | 1 | $3.02 | |
| 3 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 4 | 0648-713 | SEAT, SPRING-DRIVEN | 1 | $3.57 | |
| 5 | 0648-774 | SPRING,DRIVEN-175-280-ORANGE | 1 | $27.95 | |
| 6 | 0648-806 | SPACER,ACT DRIVEN-CASTED CAM | 1 | $3.99 | |
| 7 | 0648-453 | SEAT,SPRING-DRVN | 1 | $7.03 | |
| 8 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 9 | 0648-139 | ROLLER,DRIVEN CLUTCH | 1 | $12.35 | |
| 10 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 11 | 0637-322 | UPDATE KIT,TORQUE BRACKET RETAINER | 1 | $19.25 | |
| 12 | 1623-517 | SCREW,MACH-TSBH 10-24X1.25 W/2353 | 1 | $3.80 |
