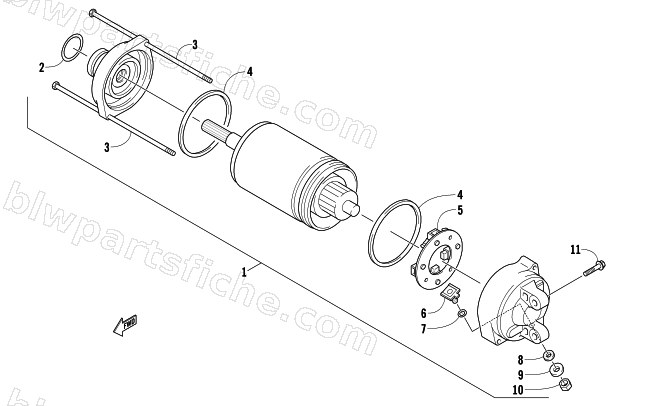

STARTER MOTOR ASSEMBLY
2016 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-364 | MOTOR,STARTER-ASSEMBLY | 1 | $517.95 | |
| 2 | 3020-365 | O-RING | 1 | $15.11 | |
| 3 | 3020-366 | SCREW,CAP-HH | 1 | $12.35 | |
| 4 | 3020-367 | GASKET | 1 | $15.11 | |
| 5 | 3020-368 | BRUSH SET | 1 | $85.95 | |
| 6 | 3020-369 | BRUSH,TERMINAL | 1 | $5.37 | |
| 7 | 3020-370 | O-RING | 1 | $4.40 | |
| 8 | 3020-371 | WASHER | 1 | $5.92 | |
| 9 | 3020-372 | WASHER | 1 | $1.92 | |
| 10 | 3020-373 | NUT | 1 | $3.44 | |
| 11 | 3020-163 | SCREW, CAP | 1 | $4.26 |
