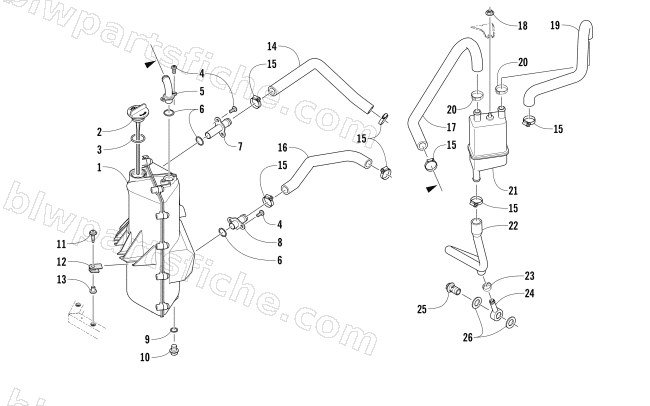

OIL TANK ASSEMBLY
2016 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2670-489 | DIPSTICK,OIL TANK-W/ O-RING | 1 | $38.95 | |
| 3 | 2670-135 | O-RING,OIL CAP | 1 | $2.19 | |
| 4 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 6 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 9 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 10 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 11 | 2623-084 | SCREW,MACH-TSTRH M6X30 DPT-BLK-W/2353 | 1 | $1.50 | |
| 12 | 2670-453 | BUMPER,RUBBER-OIL TANK | 1 | $2.88 | |
| 13 | 2623-114 | BUSHING,FLANGED-OIL TANK | 1 | $12.35 | |
| 14 | 0610-958 | HOSE,OIL-RETURN | 1 | $50.95 | |
| 15 | 1623-182 | CLAMP, INERCOOLER-SMALL | 1 | $4.40 | |
| 16 | 0610-957 | HOSE,OIL-FEED | 1 | $62.95 | |
| 17 | 0610-984 | HOSE,OIL-TANK/SEPARATOR | 1 | $24.77 | |
| 18 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 19 | 0610-985 | HOSE,OIL-AIRBOX/SEPARATOR | 1 | $38.95 | |
| 20 | 1623-350 | CLAMP,H0SE-CRIMP-25.6 | 1 | $1.50 | |
| 21 | 1770-058 | R/B 1770-194 | 1 | $89.95 | |
| 26 | 0812-026 | GASKET,WASHER | 1 | $3.57 |
