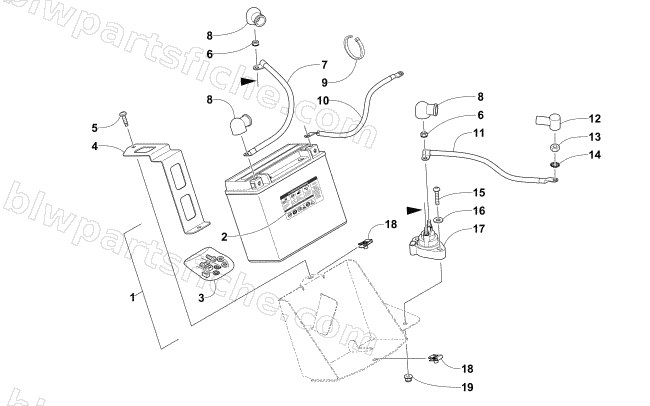

BATTERY AND TRAY ASSEMBLY
2016 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-783 | BRKT,HOLDDOWN-BATTERY | 1 | $19.25 | |
| 5 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0645-786 | CABLE,BATTERY/SOLENOID | 1 | $38.95 | |
| 8 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0645-785 | CABLE,BATTERY/GROUND | 1 | $34.95 | |
| 11 | 0645-784 | CABLE,SOLENOID/STARTER | 1 | $43.95 | |
| 12 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 13 | 3020-373 | NUT | 1 | $3.44 | |
| 14 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 15 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
