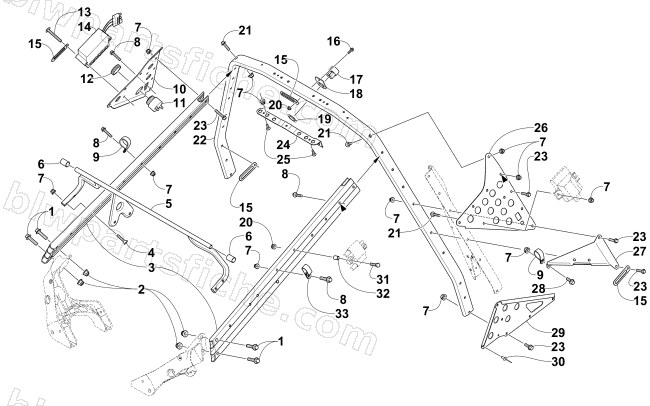

STEERING SUPPORT ASSEMBLY
2016 BEARCAT 2000 XTE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0607-919 | FRAME,UPR-FRT INNER-MACH-F/C | 1 | $58.95 | |
| 4 | 1623-776 | SCREW,MACH-HSFH-M6X1.0X45 CL10.9 Z&Y | 1 | $1.37 | |
| 5 | 4706-255 | SUPPORT, HEADLIGHT-PTD BLACK | 1 | $125.95 | |
| 6 | 1623-900 | SPACER,HOOD CLIP-12.7X15.9X25.4 | 1 | $0.68 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 10 | 0607-922 | GUSSET, SUPPORT-STEERING-SPAR-RH-FC | 1 | $34.95 | |
| 11 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 12 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 13 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 14 | 0630-323 | REGULATOR/RECTIFIER | 1 | $183.95 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 17 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 18 | 0605-267 | BRKT,MTG-RECOIL BUSHING | 1 | $23.39 | |
| 19 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 20 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 21 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 22 | 0605-964 | SUPPORT, STEERING-MACH-BCWT | 1 | $133.95 | |
| 23 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 24 | 5606-137 | PLATE,NUT-STEERING SUPPORT-2 STROKE | 1 | $34.95 | |
| 25 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 26 | 0607-903 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $60.95 | |
| 27 | 4606-908 | BRKT,SUPPORT-CLUTCH GUARD | 1 | $16.49 | |
| 28 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 29 | 3606-744 | BRKT, OUTER FOOTREST-RH | 1 | $22.01 | |
| 29 | 3606-745 | BRKT, OUTER FOOTREST-LH | 1 | $22.01 | |
| 30 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 31 | 8402-560 | SCREW, CAP-HH-M5X.8X60 | 1 | $0.95 | |
| 32 | 1623-612 | SPACER,9.0 OD X 6.4 ID X 10.5MM | 1 | $3.57 | |
| 33 | 1623-762 | CLAMP,DOUBLE TUBE | 1 | $6.75 |
