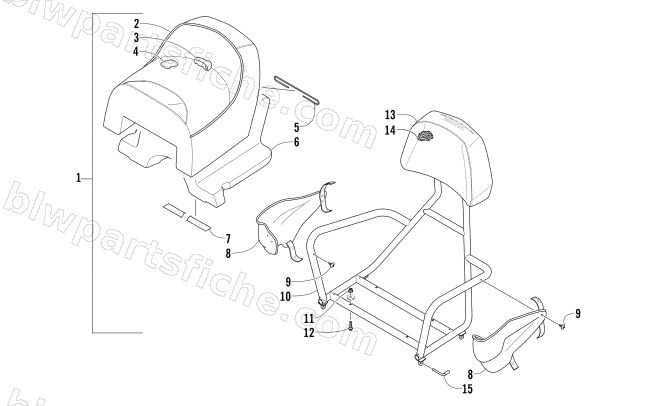

2016 Arctic Cat BEARCAT 2000 XT — REAR PASSENGER SEAT AND BACKREST ASSEMBLY
2016 BEARCAT 2000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-652 | SEAT, REAR-MFG ASSY-BCWT | 1 | $853.95 | |
| 2 | 4706-651 | COVER, SEAT-PASS-BCWT | 1 | $208.95 | |
| 4 | 4706-121 | FOAM, SEAT-PASS-BCWT .42R@3.7 | 1 | $132.95 | |
| 5 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 | |
| 6 | 5606-278 | SEAT BASE - REAR - BCWT | 1 | $133.95 | |
| 7 | 6990-283 | VELCRO,HOOK-SELF LOCK W/ADH-1"X80" | 1 | $78.95 | |
| 8 | 5606-834 | WINDGUARD-RH | 1 | $69.95 | |
| 8 | 5606-835 | WINDGUARD-LH | 1 | $69.95 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 4706-865 | FRAME, SEAT-REAR-PTD BLK | 1 | $244.95 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 13 | 4706-250 | COVER, BACKREST | 1 | $208.95 | |
| 14 | 5606-718 | FOAM,BACKREST-2010 TOUR | 1 | $88.95 | |
| 15 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 |
