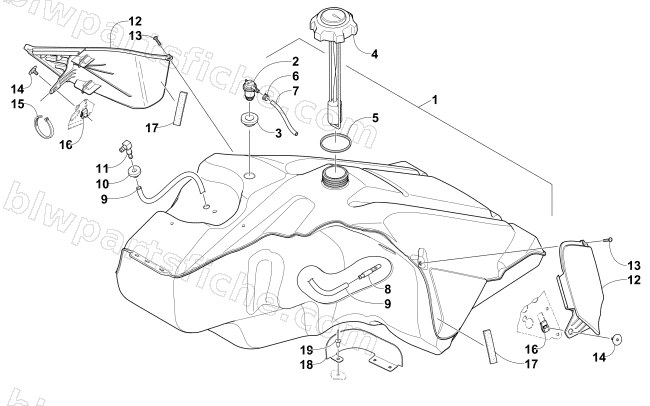

GAS TANK ASSEMBLY
2016 BEARCAT 2000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-029 | TANK,FUEL-XT FC-EVOH-ASSY | 1 | $458.95 | |
| 2 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 3 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 4 | 0670-427 | CAP,GAS-W/GAUGE {13.25"} | 1 | $57.95 | |
| 5 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 6 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 7 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 8 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 9 | 0610-815 | R/B 0610-814 | 1 | $191.95 | |
| 9 | 0610-814 | HOSE,GREEN -.187 X .312 X 50 FEET | 1 | $239.95 | |
| 10 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 11 | 2670-020 | ELBOW, GAS TANK 90 | 1 | $17.87 | |
| 12 | 4706-746 | PANEL, KNEE-RH-ROUTED | 1 | $14.95 | |
| 12 | 4706-747 | PANEL, KNEE-LH-ROUTED | 1 | $14.95 | |
| 13 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 14 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 17 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 18 | 6606-069 | BRKT, FUEL TANK | 1 | $15.11 | |
| 19 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
