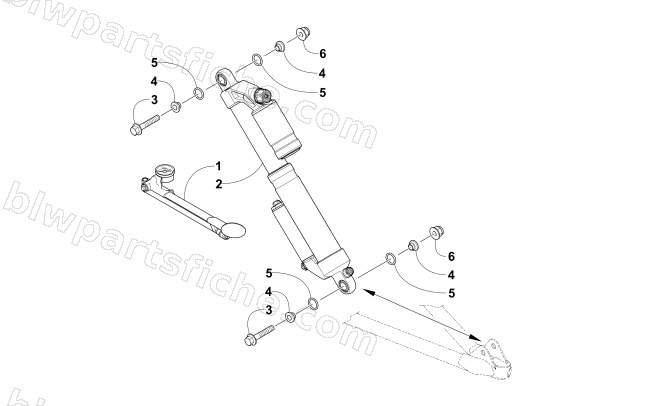

2015 Arctic Cat ZR 9000 SNO PRO RR — FRONT SHOCK ABSORBER ASSEMBLY
2015 ZR 9000 SNO PRO RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0641-257 | PUMP,FOX FLOAT EVOL-DUAL GAUGE | 1 | $69.95 | |
| 2 | 3703-344 | SHOCK,SKI-EVOL X-RH (RR) | 1 | $1,263.95 | |
| 2 | 3703-345 | SHOCK,SKI-EVOL X-LH (RR) | 1 | $1,263.95 | |
| 3 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 4 | 3604-709 | SPACER,SPHERICAL BEARING | 1 | $4.40 | |
| 5 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
