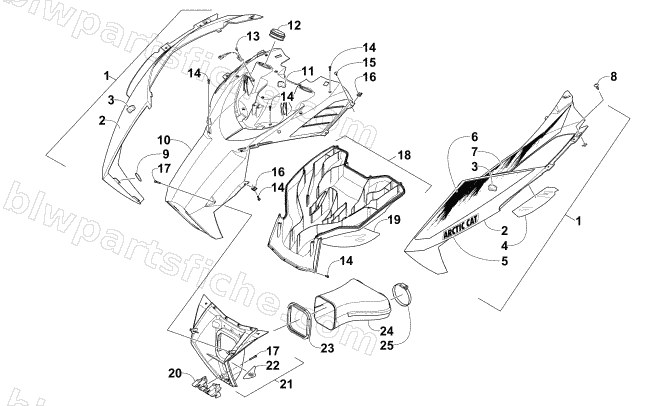

2015 Arctic Cat ZR 8000 SNO PRO — HOOD AND AIR INTAKE ASSEMBLY
2015 ZR 8000 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-374 | HOOD,W/GRN DECALS-RH WHT (8000 SP) | 1 | $179.95 | |
| 1 | 4718-375 | HOOD,W/GRN DECALS-LH WHT (8000 SP) | 1 | $179.95 | |
| 1 | 4718-372 | HOOD,W/ORN DECALS-RH WHT (8000 SP) | 1 | $174.95 | |
| 1 | 4718-373 | HOOD,W/ORN DECALS-LH WHT (8000 SP) | 1 | $194.95 | |
| 2 | 3718-612 | HOOD,W/FOAM-RH-WHT | 1 | $150.95 | |
| 2 | 3718-613 | HOOD,W/FOAM-LH-WHT | 1 | $168.95 | |
| 3 | 0617-647 | FOAM,HOOD-LH | 1 | $24.77 | |
| 4 | 6606-407 | FOIL,PROTECTIVE-HOOD-LH | 1 | $2.61 | |
| 5 | 0621-732 | DECAL,HOOD-"ARCTIC CAT"-BLK/WHT | 1 | $13.73 | |
| 6 | 1621-496 | DECAL,HOOD-FWD GRN-RH | 1 | $24.77 | |
| 6 | 1621-497 | DECAL,HOOD-FWD GRN-LH | 1 | $24.77 | |
| 6 | 1621-462 | DECAL,HOOD-FWD ORN-RH | 1 | $30.95 | |
| 6 | 1621-463 | DECAL,HOOD-FWD ORN-LH | 1 | $30.95 | |
| 7 | 1621-498 | DECAL,HOOD-RR GRN-RH | 1 | $13.73 | |
| 7 | 1621-499 | DECAL,HOOD-RR GRN-LH | 1 | $13.73 | |
| 7 | 1621-464 | DECAL,HOOD-RR ORN-RH | 1 | $16.49 | |
| 7 | 1621-465 | DECAL,HOOD-RR ORN-LH | 1 | $16.49 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 1623-960 | O-RING,1 1/16 ID X 1 1/4 OD | 1 | $1.37 | |
| 10 | 5706-356 | PLENUM,INTAKE-UPPER W/FOAM | 1 | $191.95 | |
| 11 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 12 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 13 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 18 | 5706-358 | PLENUM,INTAKE-LOWER REAR W/FOIL | 1 | $167.95 | |
| 19 | 6606-406 | FOIL,PROTECTIVE-PLENUM | 1 | $3.57 | |
| 20 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 21 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 22 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 23 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 24 | 2670-328 | BOOT,EXTENSION-EFI ASSY | 1 | $88.95 | |
| 25 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 |
