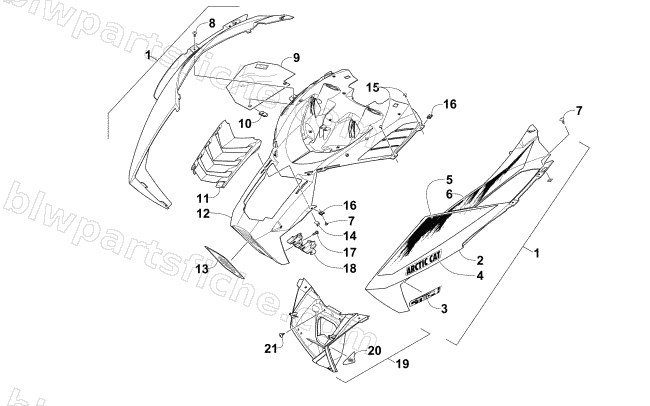

2015 Arctic Cat ZR 7000 SNO PRO — HOOD ASSEMBLY
2015 ZR 7000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-378 | HOOD,W/GRN DECALS-RH WHT (7000 SP) | 1 | $179.95 | |
| 1 | 4718-379 | HOOD,W/GRN DECALS-LH WHT (7000 SP) | 1 | $179.95 | |
| 2 | 6606-324 | HOOD,MAIN-RH-WHT | 1 | $156.95 | |
| 2 | 6606-325 | HOOD,MAIN-LH-WHT | 1 | $156.95 | |
| 3 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 4 | 0621-732 | DECAL,HOOD-"ARCTIC CAT"-BLK/WHT | 1 | $13.73 | |
| 5 | 1621-496 | DECAL,HOOD-FWD GRN-RH | 1 | $24.77 | |
| 5 | 1621-497 | DECAL,HOOD-FWD GRN-LH | 1 | $24.77 | |
| 6 | 1621-498 | DECAL,HOOD-RR GRN-RH | 1 | $13.73 | |
| 6 | 1621-499 | DECAL,HOOD-RR GRN-LH | 1 | $13.73 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 9 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 10 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 11 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 12 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 13 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 14 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 18 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 19 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 20 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 21 | 1623-129 | R/B 2623-166 | 1 | $0.35 |
