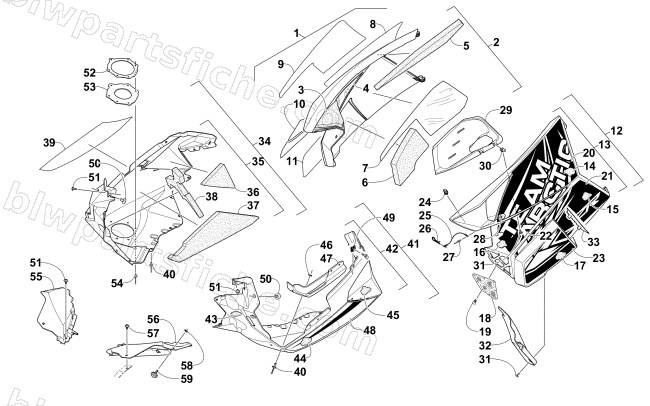

2015 Arctic Cat ZR 7000 SNO PRO RR — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 7000 SNO PRO RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-216 | PANEL,SIDE-RH W/DECALS(4 STRK RR) | 1 | $359.95 | |
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 1621-354 | DECAL,SIDE PANEL-UPR RH | 1 | $38.95 | |
| 9 | 1621-356 | DECAL,SIDE PANEL-LWR RH | 1 | $39.95 | |
| 10 | 1621-360 | DECAL,SIDE PANEL-MID RH | 1 | $19.25 | |
| 11 | 1621-358 | DECAL,SIDE PANEL-FWD RH | 1 | $16.49 | |
| 12 | 4718-215 | PANEL,SIDE-LH W/DECALS(2 STRK RR) | 1 | $359.95 | |
| 13 | 4718-101 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 17 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 18 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 1621-355 | DECAL,SIDE PANEL-UPR LH | 1 | $38.95 | |
| 21 | 1621-357 | DECAL,SIDE PANEL-LWR LH | 1 | $41.95 | |
| 22 | 1621-361 | DECAL,SIDE PANEL-MID LH | 1 | $19.25 | |
| 23 | 1621-359 | DECAL,SIDE PANEL-FWD LH | 1 | $16.49 | |
| 24 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 32 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 33 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 | |
| 34 | 4718-226 | PLATE,SKID-TA GRN-RH 7000-W/DECAL | 1 | $187.95 | |
| 35 | 4718-228 | PLATE,SKID-TA GRN-RH 7000-W/FOAM | 1 | $180.95 | |
| 36 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 37 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 38 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 39 | 1621-362 | DECAL,SKID PLATE-REAR RH | 1 | $24.77 | |
| 40 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 41 | 4718-219 | PLATE,SKID-LH W/DECAL (RR) | 1 | $152.95 | |
| 42 | 4718-221 | PLATE,SKID-TA GRN-LH W/FOAM | 1 | $126.95 | |
| 46 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 47 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 48 | 1621-363 | DECAL,SKID PLATE-REAR LH | 1 | $24.77 | |
| 49 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 50 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 51 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 52 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 53 | 2612-964 | SEAL,EXHAUST OUTLET-7000 | 1 | $12.35 | |
| 54 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 55 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 56 | 6606-579 | PANEL,FILLER-LH BK-Z3 | 1 | $34.95 | |
| 57 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 58 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 59 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
