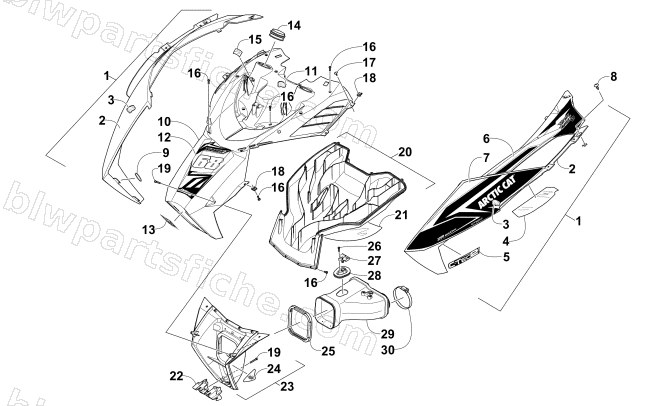

2015 Arctic Cat ZR 6000 TUCKER HIBBERT RR — HOOD AND AIR INTAKE ASSEMBLY
2015 ZR 6000 TUCKER HIBBERT RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-562 | HOOD,BLK-RH W/DECALS(6000 RR TH) | 1 | $212.95 | |
| 1 | 4718-563 | HOOD,BLK-LH W/DECALS(6000 RR TH) | 1 | $212.95 | |
| 2 | 3718-588 | HOOD,W/FOAM-RH-BLK | 1 | $124.95 | |
| 2 | 3718-589 | HOOD,W/FOAM-LH-BLK | 1 | $124.95 | |
| 3 | 0617-647 | FOAM,HOOD-LH | 1 | $24.77 | |
| 4 | 6606-407 | FOIL,PROTECTIVE-HOOD-LH | 1 | $2.61 | |
| 5 | 0621-906 | DECAL,HOOD-"CTEC2"-TA GRN | 1 | $6.75 | |
| 6 | 2621-190 | DECAL,HOOD-REAR RH | 1 | $19.25 | |
| 6 | 2621-191 | DECAL,HOOD-REAR LH | 1 | $19.25 | |
| 7 | 2621-192 | DECAL,HOOD-FWD RH | 1 | $49.95 | |
| 7 | 2621-193 | DECAL,HOOD-FWD LH | 1 | $49.95 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 1623-960 | O-RING,1 1/16 ID X 1 1/4 OD | 1 | $1.37 | |
| 10 | 5706-356 | PLENUM,INTAKE-UPPER W/FOAM | 1 | $191.95 | |
| 11 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 12 | 2621-204 | DECAL,PLENUM-UPR "68" | 1 | $20.63 | |
| 13 | 2621-205 | DECAL,PLENUM-LWR | 1 | $13.73 | |
| 14 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 15 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 16 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 17 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 18 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 19 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 20 | 5706-358 | PLENUM,INTAKE-LOWER REAR W/FOIL | 1 | $167.95 | |
| 21 | 6606-406 | FOIL,PROTECTIVE-PLENUM | 1 | $3.57 | |
| 22 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 23 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 24 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 25 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 26 | 2623-016 | SCREW,SELF TAP-TSPNH 10-16X7/8 TYPE A SS | 1 | $1.78 | |
| 27 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 28 | 2670-444 | BOOT,T-MAP SENSOR | 1 | $53.95 | |
| 29 | 1770-056 | BOOT,EXTENSION-EFI ASSY | 1 | $101.95 | |
| 30 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 |
