2015 Arctic Cat ZR 6000 SNO PRO RR — REED VALVE ASSEMBLY
2015 ZR 6000 SNO PRO RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

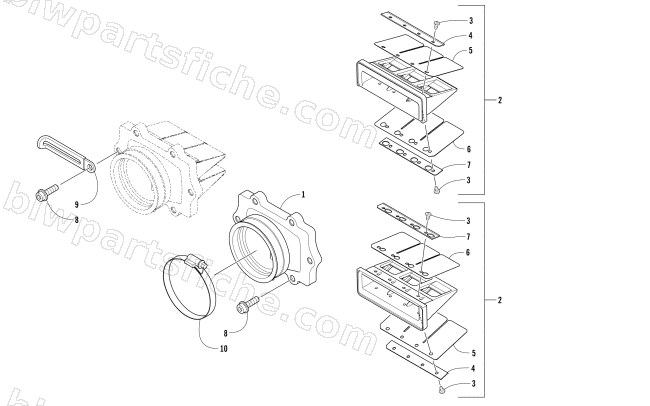

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0907-003 | MANIFOLD, INTAKE-50MM | 1 | $82.95 | |
| 2 | 0907-001 | VALVE,REED-ASSY | 1 | $73.95 | |
| 3 | 0923-045 | SCREW, PPNH-M 3X6 | 1 | $0.26 | |
| 4 | 0907-007 | STOPPER, REED-OUTER | 1 | $2.47 | |
| 5 | 0907-005 | REED #1 (0.4, 50/50) | 1 | $15.11 | |
| 6 | 0907-006 | REED #2 (0.4, 50/50) | 1 | $15.11 | |
| 7 | 0907-008 | STOPPER, REED-INNER | 1 | $2.47 | |
| 8 | 0923-025 | SCREW,CAP-TSRDWH M6X1X20 CL 10.9 | 1 | $0.54 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 |
