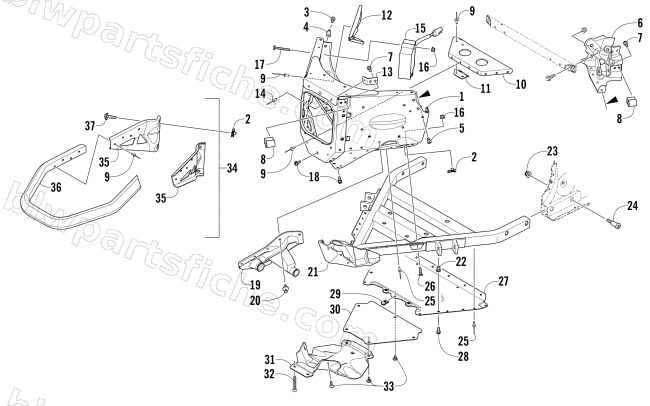

2015 Arctic Cat ZR 6000 SNO PRO ES — FRONT BUMPER AND FRAME ASSEMBLY
2015 ZR 6000 SNO PRO ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-479 | PANEL,FRT-ASSY 10MM 4000/6000-PTD BLK | 1 | $445.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 | |
| 4 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 5 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 1707-668 | HOUSING,SHOCK MOUNT-UPR RH-PTD BLK | 1 | $101.95 | |
| 6 | 1707-669 | HOUSING,SHOCK MOUNT-UPR LH-PTD BLK | 1 | $101.95 | |
| 7 | 8413-617 | SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353 | 1 | $1.23 | |
| 8 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 9 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 10 | 1607-565 | BRKT,MTG-STEERING POST-LWR | 1 | $29.95 | |
| 11 | 1607-566 | BRKT,MTG-STEERING POST BRACE-LWR | 1 | $3.57 | |
| 12 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 13 | 1607-561 | GUSSET,MTG BRKT-UPR A-ARM | 1 | $1.78 | |
| 14 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 15 | 0630-312 | REGULATOR/RECTIFER | 1 | $227.95 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 8477-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&BLK | 1 | $1.50 | |
| 18 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 19 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 19 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 20 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 21 | 1707-865 | R/B 3707-130 | 1 | $501.95 | |
| 21 | 1707-844 | R/B 3707-130 | 1 | $435.95 | |
| 22 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 23 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 24 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 26 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 27 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 28 | 8476-520 | SCREW,MACH-TSTRH M5X0.8X20 Z&Y | 1 | $1.64 | |
| 29 | 1623-052 | NUT,U | 1 | $0.95 | |
| 30 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 31 | 6606-614 | PLATE,SKID-CENTER | 1 | $13.73 | |
| 32 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 33 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 34 | 1707-974 | BUMPER,FRT-TEAM ARCTIC GRN-ASSY | 1 | $79.95 | |
| 34 | 1707-598 | BUMPER,FRT-ORN-ASSY | 1 | $109.95 | |
| 35 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 35 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 36 | 1707-973 | TUBE,FRT BUMPER-PTD TEAM ARCTIC GRN | 1 | $75.95 | |
| 36 | 1707-580 | TUBE,FRT BUMPER-PTD ORN | 1 | $74.95 | |
| 37 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 |
