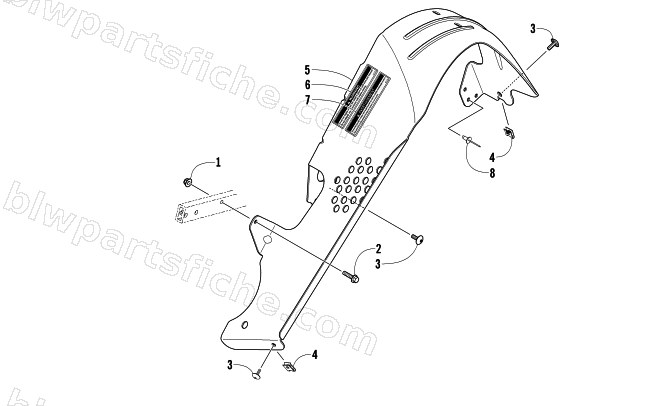

2015 Arctic Cat ZR 6000 SNO PRO ES — BELT GUARD ASSEMBLY
2015 ZR 6000 SNO PRO ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 2 | 8408-525 | SCREW,CAP-HFH M5X0.8X25 CL8.8 Z&Y | 1 | $0.95 | |
| 3 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 4 | 1623-052 | NUT,U | 1 | $0.95 | |
| 5 | 2707-275 | GUARD,CLUTCH-W/WARNING DECALS | 1 | $102.95 | |
| 6 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 7 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 8 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
