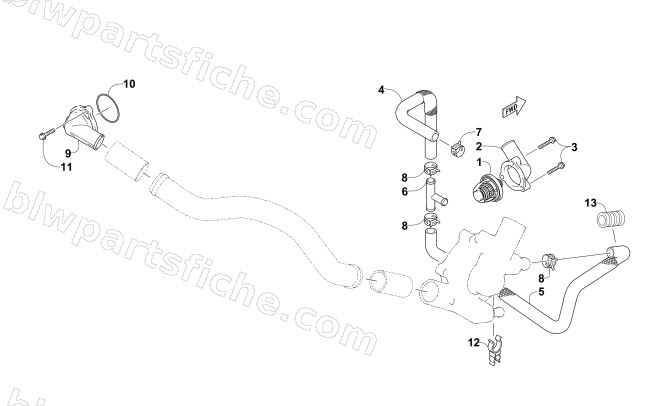

2015 Arctic Cat ZR 5000 LXR — WATER HOSE ASSEMBLY
2015 ZR 5000 LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-182 | THERMOSTAT,WATER | 1 | $66.95 | |
| 2 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 3 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 4 | 3007-184 | HOSE,WATER BYPASS NO.1 | 1 | $41.95 | |
| 5 | 3007-514 | HOSE,WATER BYPASS NO.2 | 1 | $43.95 | |
| 6 | 3007-187 | PIPE,WATER | 1 | $39.95 | |
| 7 | 3007-188 | CLIP,WATER BYPASS HOSE NO.1 | 1 | $4.68 | |
| 8 | 3008-488 | CLIP (ID:17.8) | 1 | $6.34 | |
| 9 | 3007-190 | CONNECTOR,WATER INLET | 1 | $65.95 | |
| 10 | 0830-173 | ORING,ID44.12 X CS2.62 | 1 | $1.50 | |
| 11 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 12 | 3007-516 | CLAMP,WATER BYPASS HOSE | 1 | $13.95 | |
| 13 | 0716-908 | LOOM, .75 NYLON 3 FOOT PC. | 1 | $12.35 |
