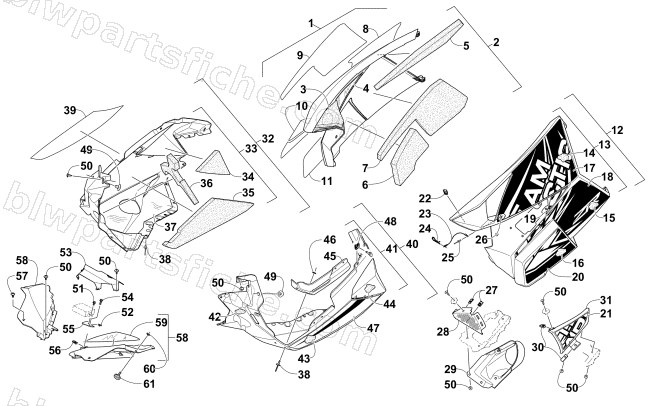

2015 Arctic Cat ZR 4000 RR — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 4000 RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-214 | PANEL,SIDE-RH W/DECALS(2 STRK RR) | 1 | $359.95 | |
| 2 | 3718-180 | PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) | 1 | $267.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 1621-354 | DECAL,SIDE PANEL-UPR RH | 1 | $38.95 | |
| 9 | 1621-356 | DECAL,SIDE PANEL-LWR RH | 1 | $39.95 | |
| 10 | 1621-360 | DECAL,SIDE PANEL-MID RH | 1 | $19.25 | |
| 11 | 1621-358 | DECAL,SIDE PANEL-FWD RH | 1 | $16.49 | |
| 12 | 4718-581 | PANEL,SIDE-LH W/DECALS(6/8000 RR) | 1 | $359.95 | |
| 13 | 4718-553 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 2621-301 | DECAL,SIDE-PANEL-UPPER-LH (RR) | 1 | $75.95 | |
| 18 | 1621-357 | DECAL,SIDE PANEL-LWR LH | 1 | $41.95 | |
| 19 | 2621-299 | DECAL,SIDE-PANEL-MID-REAR-LH (RR) | 1 | $17.87 | |
| 20 | 1621-359 | DECAL,SIDE PANEL-FWD LH | 1 | $16.49 | |
| 21 | 2621-297 | DECAL,SIDE-PANEL-MID-VENT-LH (RR) | 1 | $24.77 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 29 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 32 | 4718-522 | PLATE,SKID-RH ZR 4000 RR-W/DECAL | 1 | $192.95 | |
| 33 | 4718-524 | PLATE,SKID-RH TEAM ARC GRN-W/FOAM | 1 | $192.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 6606-966 | FOIL,PROTECTIVE-LWR SKID-RH | 1 | $5.78 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 1621-362 | DECAL,SKID PLATE-REAR RH | 1 | $24.77 | |
| 40 | 4718-219 | PLATE,SKID-LH W/DECAL (RR) | 1 | $152.95 | |
| 41 | 4718-221 | PLATE,SKID-TA GRN-LH W/FOAM | 1 | $126.95 | |
| 46 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 47 | 1621-363 | DECAL,SKID PLATE-REAR LH | 1 | $24.77 | |
| 48 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 49 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 50 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 52 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 53 | 6606-942 | SHIELD,HEAT-ECU | 1 | $32.95 | |
| 54 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 55 | 6606-941 | BRKT,MTG-ECU | 1 | $16.49 | |
| 56 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 57 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 58 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 58 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 59 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 60 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 61 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
