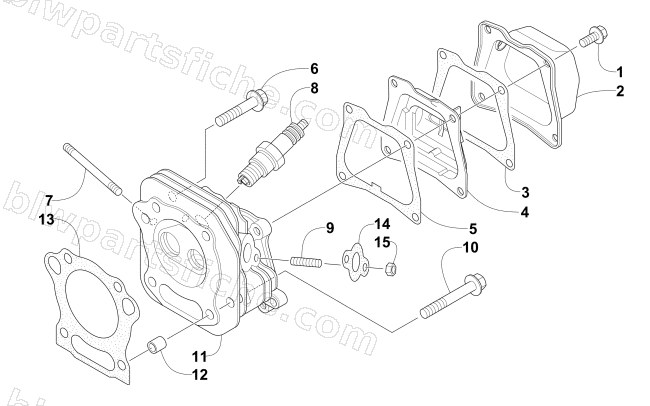

2015 Arctic Cat ZR 120 — CYLINDER AND AIR BREATHER ASSEMBLY
2015 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-121 | SCREW, CAP | 1 | $3.16 | |
| 2 | 3020-027 | COVER, CYLINDER HEAD | 1 | $37.95 | |
| 3 | 3020-026 | GASKET, HEAD COVER | 1 | $19.25 | |
| 4 | 3020-025 | BREATHER, AIR | 1 | $56.95 | |
| 5 | 3020-028 | GASKET, AIR BREATHER | 1 | $19.25 | |
| 6 | 3020-124 | SCREW, CAP | 1 | $4.95 | |
| 7 | 3020-093 | BOLT, STUD | 1 | $13.73 | |
| 8 | 0217-809 | SPARK PLUG, BPR4ES | 1 | $4.54 | |
| 9 | 3020-118 | BOLT, STUD | 1 | $2.83 | |
| 10 | 3020-125 | SCREW, CAP | 1 | $4.95 | |
| 11 | 3020-008 | HEAD, CYLINDER | 1 | $203.95 | |
| 12 | 3020-151 | PIN, DOWEL | 1 | $2.47 | |
| 13 | 3020-009 | GASKET, CYLINDER HEAD | 1 | $27.95 | |
| 14 | 3020-059 | GASKET, EXHAUST PIPE | 1 | $8.21 | |
| 15 | 3020-117 | NUT | 1 | $4.68 |
