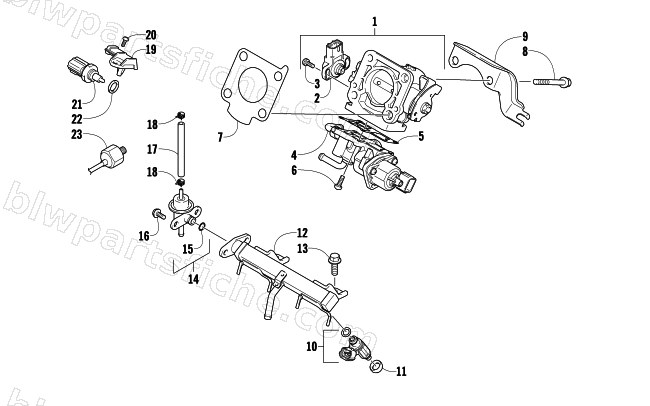

2015 Arctic Cat XF 9000 SNO PRO LTD 137 — THROTTLE BODY ASSEMBLY
2015 XF 9000 SNO PRO LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-826 | BODY ASSY,THROTTLE | 1 | $2,238.95 | |
| 2 | 3006-651 | SENSOR,THROTTLE-'03 4-STROKE | 1 | $567.95 | |
| 3 | 3006-652 | SCREW,TPS SENSOR | 1 | $5.65 | |
| 4 | 3007-827 | VALVE,IDLE SPEED CONTROL | 1 | $747.95 | |
| 5 | 3006-215 | GASKET,ISC VALVE '02 660 L/C | 1 | $30.95 | |
| 6 | 3007-828 | SCREW,ISC VALVE | 1 | $3.85 | |
| 7 | 3006-560 | GASKET,THROTTLE BODY-660 L/C | 1 | $19.25 | |
| 8 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 9 | 3007-829 | GUIDE,THROTTLE CABLE | 1 | $58.95 | |
| 10 | 3007-830 | INJECTOR ASSY,FUEL | 1 | $432.95 | |
| 11 | 3006-126 | CUSHION,8.7X16.3X5.5 '02 660 L/C | 1 | $49.95 | |
| 12 | 3007-831 | PIPE,DELIVERY | 1 | $393.95 | |
| 13 | 3007-432 | BOLT | 1 | $3.44 | |
| 14 | 3006-880 | REGULATOR ASS'Y,FUEL PRESSURE | 1 | $453.95 | |
| 15 | 3006-881 | RING (660 TURBO) | 1 | $22.01 | |
| 16 | 3007-457 | BOLT | 1 | $3.16 | |
| 17 | 3006-851 | HOSE,3.5X7.5X601 | 1 | $24.77 | |
| 18 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 19 | 3007-832 | SENSOR ASSY,BOOST | 1 | $556.95 | |
| 20 | 3007-833 | SCREW,PRESSURE SENSOR | 1 | $1.92 | |
| 21 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 22 | 3530-047 | GASKET,WATER TEMP SENSOR | 1 | $4.40 | |
| 23 | 3006-886 | SENSOR ASS'Y,KNOCK | 1 | $357.95 |
