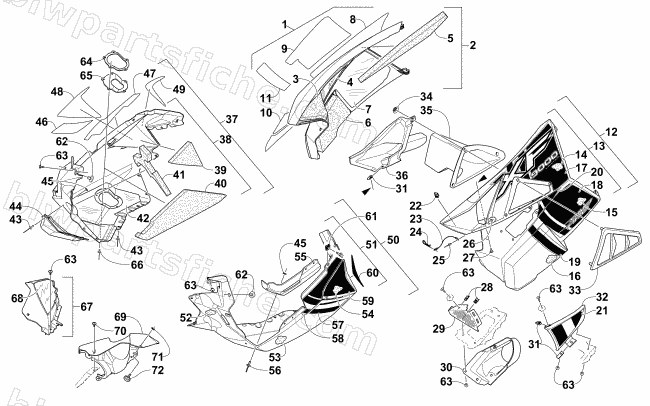

2015 Arctic Cat XF 9000 SNO PRO LTD 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 XF 9000 SNO PRO LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-318 | PANEL,SIDE-RH-W/DECALS (XF 9 LTD GRN) | 1 | $359.95 | |
| 1 | 4718-280 | PANEL,SIDE-RH W/DECALS(XF TURBO LTD ORN) | 1 | $359.95 | |
| 2 | 3718-454 | PANEL,SIDE-RH WHT-W/FOAM-4 STRK | 1 | $137.95 | |
| 2 | 3718-766 | PANEL,SIDE-RH W/FOAM(4STK LTD WHT W/CLR) | 1 | $282.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 1621-664 | DECAL,SIDE PANEL-UPR-GRN-RH (XF9000 LTD) | 1 | $126.95 | |
| 8 | 1621-616 | DECAL,SIDE PANEL-UPR-ORN-RH (XF9000 LTD) | 1 | $71.95 | |
| 9 | 1621-672 | DECAL,SIDE PANEL-LWR-GRN-RH (LTD) | 1 | $30.95 | |
| 9 | 1621-624 | DECAL,SIDE PANEL-LWR-ORN-RH (LTD) | 1 | $30.95 | |
| 10 | 1621-670 | DECAL,SIDE PANEL-MID-GRN-RH (LTD) | 1 | $6.75 | |
| 10 | 1621-622 | DECAL,SIDE PANEL-MID-ORN-RH (LTD) | 1 | $5.92 | |
| 11 | 1621-674 | DECAL,SIDE PANEL-FWD-GRN-RH (LTD) | 1 | $6.75 | |
| 11 | 1621-626 | DECAL,SIDE PANEL-FWD-ORN-RH (LTD) | 1 | $15.11 | |
| 12 | 4718-319 | PANEL,SIDE-LH-W/DECALS (XF 9 LTD GRN) | 1 | $359.95 | |
| 12 | 4718-281 | PANEL,SIDE-LH W/DECALS(XF TURBO LTD ORN) | 1 | $359.95 | |
| 13 | 4718-559 | PANEL,SIDE-LH-W/FOAM-WHT TURBO | 1 | $259.95 | |
| 13 | 4718-115 | PANEL,SIDE-LH-W/FOAM-WHT/CLR-ASSY | 1 | $267.95 | |
| 14 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 1621-665 | DECAL,SIDE PANEL-UPR-GRN-LH (XF9000 LTD) | 1 | $110.95 | |
| 17 | 1621-617 | DECAL,SIDE PANEL-UPR-ORN-LH (XF9000 LTD) | 1 | $71.95 | |
| 18 | 1621-673 | DECAL,SIDE PANEL-LWR-GRN-LH (LTD) | 1 | $30.95 | |
| 18 | 1621-625 | DECAL,SIDE PANEL-LWR-ORN-LH (LTD) | 1 | $30.95 | |
| 19 | 1621-675 | DECAL,SIDE PANEL-FWD-GRN-LH (LTD) | 1 | $6.75 | |
| 19 | 1621-627 | DECAL,SIDE PANEL-FWD-ORN-LH (LTD) | 1 | $15.11 | |
| 20 | 2621-291 | DECAL,SIDE-PANEL-MID-REAR-LH (LTD GRN) | 1 | $12.35 | |
| 20 | 2621-295 | DECAL,SIDE-PANEL-MID-REAR-LH (LTD ORN) | 1 | $9.59 | |
| 21 | 2621-289 | DECAL,SIDE-PANEL-MID-VENT-LH (LTD GRN) | 1 | $12.35 | |
| 21 | 2621-293 | DECAL,SIDE-PANEL-MID-VENT-LH (LTD ORN) | 1 | $9.59 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 27 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 28 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 29 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 2602-803 | DUCT,INTAKE-OUTER-WHT | 1 | $19.25 | |
| 32 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 33 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 34 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 35 | 1702-367 | DUCT,BELT COOLING-4 STRK-ROUTED | 1 | $42.95 | |
| 36 | 4718-206 | PLATE,SKID-RH-WHT/GRN W/DECALS (LTD) | 1 | $374.95 | |
| 37 | 4718-532 | PLATE,SKID-RH WHT-W/FOAM (8000) | 1 | $217.95 | |
| 37 | 4718-188 | PLATE,SKID-RH-WHT/ORN W/DECALS (LTD) | 1 | $374.95 | |
| 38 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 38 | 3718-746 | PLATE,SKID-WHT W/CLR-RH W/FOAM | 1 | $374.95 | |
| 39 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 40 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 41 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 42 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 43 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 44 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 45 | 1621-678 | DECAL,SKID PLATE-FWD-GRN-RH (LTD) | 1 | $22.01 | |
| 46 | 1621-676 | DECAL,SKID PLATE-UPPER-GRN-RH (LTD) | 1 | $6.75 | |
| 46 | 1621-630 | DECAL,SKID PLATE-FWD-ORN-RH (LTD) | 1 | $20.63 | |
| 47 | 1621-680 | DECAL,SKID PLATE-MID-RH (LTD) | 1 | $16.49 | |
| 47 | 1621-628 | DECAL,SKID PLATE-UPPER-ORN-RH (LTD) | 1 | $6.75 | |
| 48 | 1621-682 | DECAL,SKID PLATE-REAR-RH (LTD) | 1 | $13.73 | |
| 49 | 4718-207 | PLATE,SKID-LH-WHT/GRN W/DECALS (LTD) | 1 | $291.95 | |
| 50 | 4718-533 | PLATE,SKID-LH-W/FOAM-WHT | 1 | $126.95 | |
| 50 | 4718-189 | PLATE,SKID-LH-WHT/ORN W/DECALS (LTD) | 1 | $152.95 | |
| 51 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 51 | 3718-769 | PLATE,SKID-REAR LH W/FOAM-WHT W/CLR | 1 | $267.95 | |
| 52 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 53 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 54 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 55 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 56 | 1621-679 | DECAL,SKID PLATE-FWD-GRN-LH (LTD) | 1 | $22.01 | |
| 57 | 1621-677 | DECAL,SKID PLATE-UPPER-GRN-LH (LTD) | 1 | $6.75 | |
| 57 | 1621-631 | DECAL,SKID PLATE-FWD-ORN-LH (LTD) | 1 | $19.25 | |
| 58 | 1621-681 | DECAL,SKID PLATE-MID-LH (LTD) | 1 | $5.37 | |
| 58 | 1621-629 | DECAL,SKID PLATE-UPPER-ORN-LH (LTD) | 1 | $6.75 | |
| 59 | 1621-683 | DECAL,SKID PLATE-REAR-LH (LTD) | 1 | $13.73 | |
| 60 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 61 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 62 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 63 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 64 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 65 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 66 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 67 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 68 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 69 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 70 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 71 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
