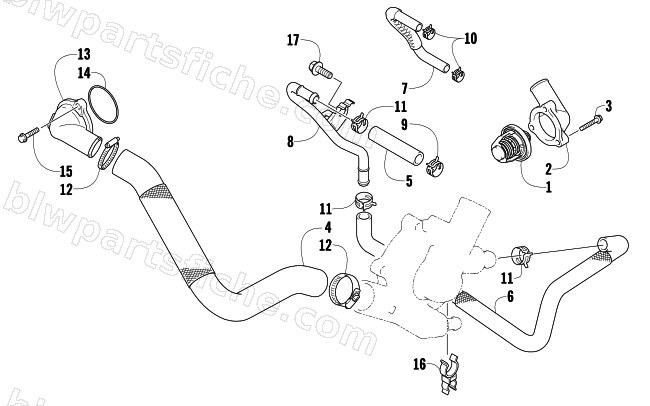

2015 Arctic Cat XF 9000 HIGH COUNTRY LTD 141 — WATER HOSE ASSEMBLY
2015 XF 9000 HIGH COUNTRY LTD 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-182 | THERMOSTAT,WATER | 1 | $66.95 | |
| 2 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 3 | 3007-369 | BOLT,CYLINDER HEAD COVER NO. 1 | 1 | $3.16 | |
| 4 | 3007-513 | HOSE,WATER INLET | 1 | $68.95 | |
| 5 | 3007-822 | HOSE,WATER BYPASS NO. 1 | 1 | $17.87 | |
| 6 | 3007-514 | HOSE,WATER BYPASS NO.2 | 1 | $43.95 | |
| 7 | 3007-823 | HOSE,WATER BYPASS NO. 3 | 1 | $39.95 | |
| 8 | 3007-824 | PIPE,WATER | 1 | $66.95 | |
| 9 | 3007-188 | CLIP,WATER BYPASS HOSE NO.1 | 1 | $4.68 | |
| 10 | 3007-189 | CLIP,WATER BYPASS HOSE NO.3 | 1 | $5.37 | |
| 11 | 3008-488 | CLIP (ID:17.8) | 1 | $6.34 | |
| 12 | 3007-857 | CLAMP,WATER HOSE | 1 | $27.95 | |
| 13 | 3007-190 | CONNECTOR,WATER INLET | 1 | $65.95 | |
| 14 | 3007-191 | O RING,WATER INLET CONN (ID:43.2,DD:2.4) | 1 | $6.47 | |
| 15 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 16 | 3007-516 | CLAMP,WATER BYPASS HOSE | 1 | $13.95 | |
| 17 | 3007-825 | BOLT,WATER PIPE | 1 | $4.68 |
