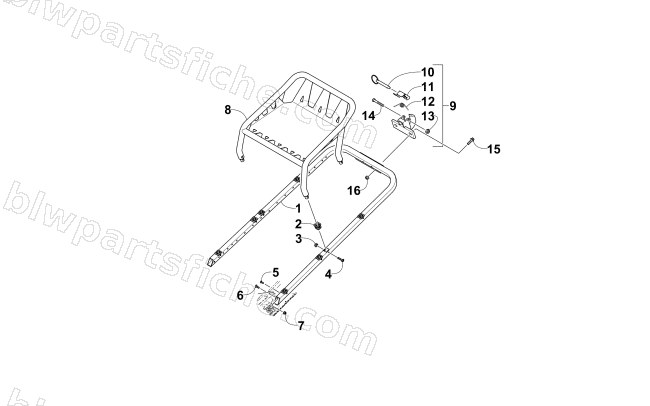

2015 Arctic Cat XF 9000 CROSS-TOUR 141 — REAR BUMPER, RACK, AND HITCH ASSEMBLY
2015 XF 9000 CROSS-TOUR 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-254 | BUMPER,REAR-141 W/HITCH PLT-ORN W/BUSH | 1 | $319.95 | |
| 2 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 3 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 4 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 5 | 0423-946 | SCREW,SELF TAP-TSPNH-M5X0.8X12 BLK | 1 | $0.68 | |
| 6 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 5706-367 | RACK,REAR-PTD BLK | 1 | $414.95 | |
| 9 | 0706-727 | HITCH,PINTAL-ASSY-SWEDISH | 1 | $109.95 | |
| 10 | 0623-213 | PIN,HITCH-COTTERLESS-SWEDISH | 1 | $20.63 | |
| 11 | 2706-229 | LATCH,HITCH-PTD BLK | 1 | $15.11 | |
| 12 | 0623-335 | SPRING,TRAILER HITCH LATCH | 1 | $15.11 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 15 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 16 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 |
