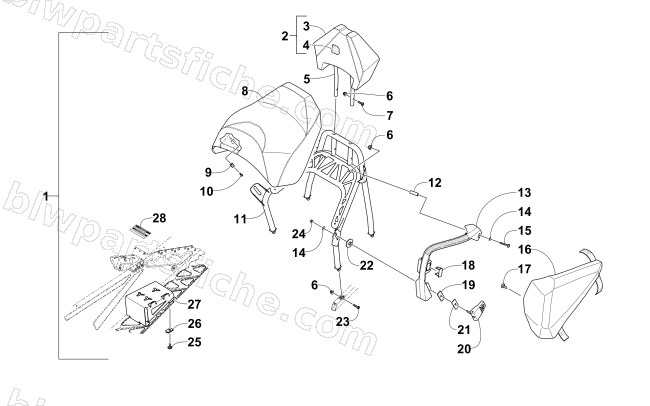

2015 Arctic Cat XF 9000 CROSS-TOUR 141 — PASSENGER SEAT AND RELATED PARTS
2015 XF 9000 CROSS-TOUR 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6639-721 | KIT,2-UP SEAT '15 ZR, XF 6/8/9000 | 1 | $948.95 | |
| 2 | 5706-785 | BACKREST,PASSENGER-ASSY | 1 | $133.95 | |
| 5 | 5706-872 | BACKREST,2-UP SEAT-PTD BLK | 1 | $65.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 8 | 5706-758 | SEAT,PASSENGER-ASSY (5/6/8/9000) | 1 | $401.95 | |
| 9 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 10 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 11 | 5706-958 | FRAME,2-UP SEAT-PTD BLK (6/8/9000) | 1 | $245.95 | |
| 12 | 6606-444 | AXEL,HANDHOLD | 1 | $5.78 | |
| 13 | 4706-532 | HAND HOLD, RH- W/HANDWARMER-MACH | 1 | $141.95 | |
| 13 | 5606-084 | HAND HOLD, RH- W/HANDWARMER | 1 | $141.95 | |
| 13 | 5606-085 | HAND HOLD, LH- W/HANDWARMER | 1 | $141.95 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 2623-079 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z&Y | 1 | $1.78 | |
| 16 | 6606-494 | DEFLECTOR,WIND-RH | 1 | $65.95 | |
| 16 | 6606-495 | DEFLECTOR,WIND-LH | 1 | $65.95 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 19 | 1623-735 | WASHER,FRICTION | 1 | $4.26 | |
| 20 | 5606-086 | LEVER, HAND HOLD | 1 | $34.95 | |
| 21 | 1623-734 | WASHER | 1 | $3.44 | |
| 22 | 4706-075 | SPACER, LATCH-PTD BLK | 1 | $17.87 | |
| 23 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 24 | 8040-396 | NUT,HEX LOCK-NYL 1/4-28 Z&Y | 1 | $0.26 | |
| 25 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 26 | 1623-052 | NUT,U | 1 | $0.95 | |
| 27 | 1707-926 | R/B 1641-258 | 1 | $51.95 | |
| 27 | 1707-927 | FOOTREST,ACCY-LH PTD BLK | 1 | $51.95 | |
| 28 | 8611-707 | DECAL,WARNING-2 UP SEAT KIT (QUEBEC) | 1 | $15.11 |
