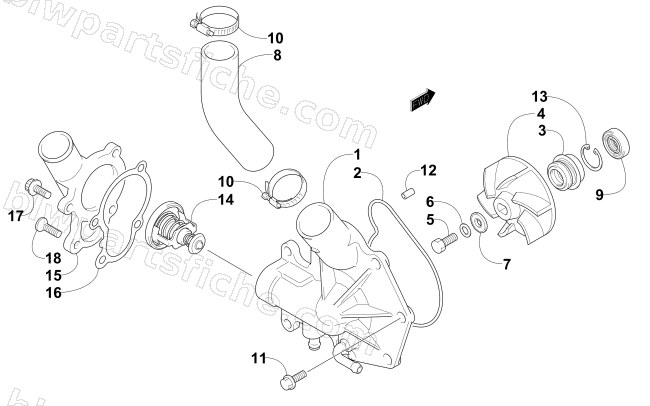

2015 Arctic Cat XF 8000 SNO PRO LTD 137 — WATER PUMP AND THERMOSTAT
2015 XF 8000 SNO PRO LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-540 | COVER,WATER PUMP | 1 | $275.95 | |
| 2 | 3007-541 | O RING,WATER PUMP COVER | 1 | $42.95 | |
| 3 | 3007-180 | SEAL,MECHANICAL | 1 | $52.95 | |
| 4 | 3007-896 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 5 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 6 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 7 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 8 | 3007-542 | HOSE,WATER INLET | 1 | $45.95 | |
| 9 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 10 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 11 | 3007-409 | BOLT | 1 | $3.16 | |
| 12 | 3005-899 | PIN | 1 | $3.44 | |
| 13 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 14 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 15 | 3007-304 | CAP,THERMOSTAT | 1 | $73.95 | |
| 16 | 3007-543 | GASKET,THERMOSTAT CAP | 1 | $20.63 | |
| 17 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 | |
| 18 | 3007-306 | BOLT,THERMOSTAT CAP (6X18.4) | 1 | $3.16 |
