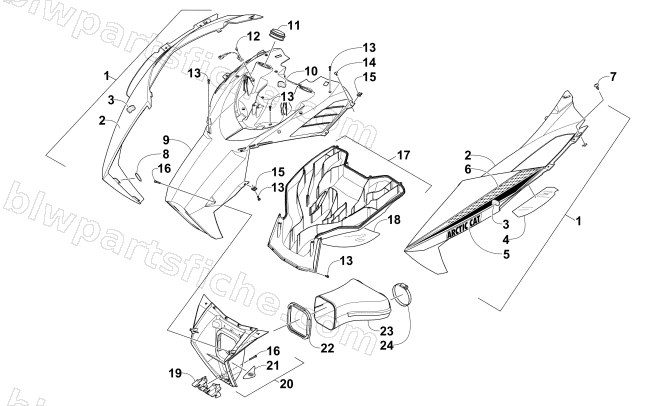

2015 Arctic Cat XF 8000 LXR 137 — HOOD AND AIR INTAKE ASSEMBLY
2015 XF 8000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-428 | HOOD,TA GRN-RH W/DECALS (2 STRK LXR) | 1 | $179.95 | |
| 1 | 4718-429 | HOOD,TA GRN-LH W/DECALS (2 STRK LXR) | 1 | $179.95 | |
| 2 | 3718-656 | HOOD,W/FOAM-RH-TEAM ARC GRN | 1 | $159.95 | |
| 2 | 3718-657 | HOOD,W/FOAM-LH-TEAM ARC GRN | 1 | $163.95 | |
| 3 | 0617-647 | FOAM,HOOD-LH | 1 | $24.77 | |
| 4 | 6606-407 | FOIL,PROTECTIVE-HOOD-LH | 1 | $2.61 | |
| 5 | 0621-755 | DECAL,HOOD-"ARCTIC CAT"-BLK/GRN | 1 | $5.95 | |
| 6 | 1621-570 | DECAL,HOOD-UPR RH | 1 | $24.77 | |
| 6 | 1621-571 | DECAL,HOOD-UPR LH | 1 | $24.77 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-960 | O-RING,1 1/16 ID X 1 1/4 OD | 1 | $1.37 | |
| 9 | 5706-356 | PLENUM,INTAKE-UPPER W/FOAM | 1 | $191.95 | |
| 10 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 11 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 12 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 13 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 16 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 17 | 5706-358 | PLENUM,INTAKE-LOWER REAR W/FOIL | 1 | $167.95 | |
| 18 | 6606-406 | FOIL,PROTECTIVE-PLENUM | 1 | $3.57 | |
| 19 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 20 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 21 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 22 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 23 | 2670-328 | BOOT,EXTENSION-EFI ASSY | 1 | $88.95 | |
| 24 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 |
