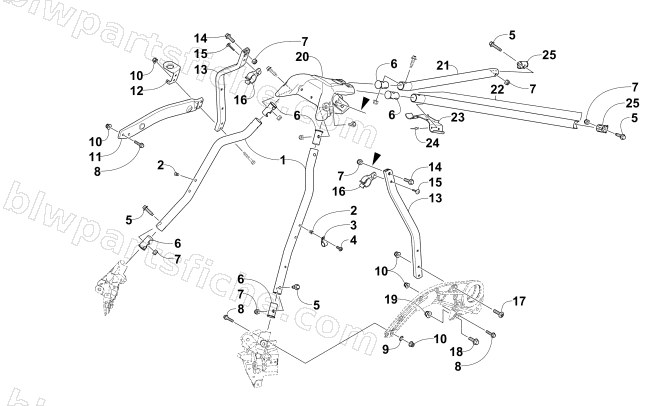

2015 Arctic Cat XF 7000 HIGH COUNTRY 141 SNO PRO — STEERING SUPPORT ASSEMBLY
2015 XF 7000 HIGH COUNTRY 141 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-076 | SPAR,UPPER FRONT-W/INSERT | 1 | $53.95 | |
| 2 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 3 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 4 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 5 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 | |
| 6 | 1607-094 | R/B 1607-747 | 1 | $4.95 | |
| 7 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 8 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 1707-584 | R/B 2707-760 | 1 | $108.95 | |
| 12 | 1712-851 | BRKT,MTG-UPR RES-PTD BLK | 1 | $20.63 | |
| 13 | 1607-121 | SUPPORT,STEERING-RH | 1 | $94.95 | |
| 13 | 1607-133 | SPAR,SUPPORT-STEERING-LH | 1 | $73.95 | |
| 14 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 16 | 0609-937 | CLIP,HARNESS-PLASTIC | 1 | $2.61 | |
| 17 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 18 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 1707-565 | SUPPORT,STEERING-PTD BLK | 1 | $189.95 | |
| 21 | 1707-566 | SPAR,REAR-RH-PTD BLK | 1 | $74.95 | |
| 22 | 5706-625 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $43.95 | |
| 23 | 6606-663 | BRKT,HOLDDOWN-SEATBASE | 1 | $12.35 | |
| 24 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 25 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 |
