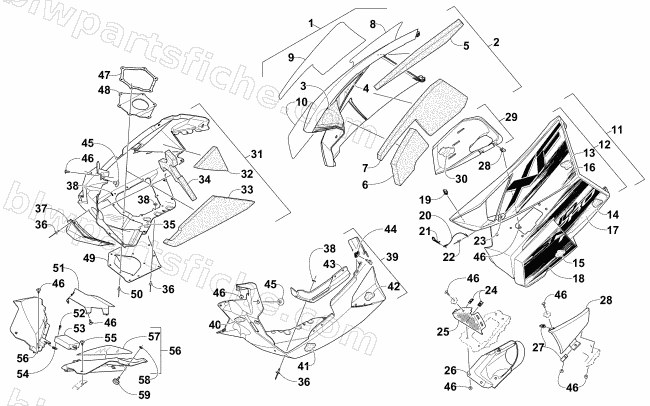

2015 Arctic Cat XF 6000 SNO PRO ES 137 EARLY BUILD — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 XF 6000 SNO PRO ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-408 | PANEL,SIDE-RH W/DECALS (XF 6/8 SP GRN) | 1 | $359.95 | |
| 2 | 3718-438 | PANEL,SIDE-RH WHT-W/FOAM-2 STRK | 1 | $164.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 1621-502 | DECAL,SIDE PANEL-UPR RH "XF" GRN | 1 | $46.95 | |
| 9 | 1621-504 | DECAL,SIDE PANEL-LWR RH-GRN | 1 | $42.95 | |
| 10 | 1621-506 | DECAL,SIDE PANEL-FWD RH-GRN | 1 | $17.87 | |
| 11 | 4718-409 | PANEL,SIDE-LH W/DECALS (XF 6/8 SP GRN) | 1 | $359.95 | |
| 12 | 4718-555 | PANEL,SIDE-LH-W/FOAM-WHT | 1 | $164.95 | |
| 13 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 16 | 1621-503 | DECAL,SIDE PANEL-UPR LH "XF" GRN | 1 | $46.95 | |
| 17 | 1621-505 | DECAL,SIDE PANEL-LWR LH-GRN | 1 | $42.95 | |
| 18 | 1621-507 | DECAL,SIDE PANEL-FWD LH-GRN | 1 | $17.87 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 21 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 22 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 23 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 24 | 1623-052 | NUT,U | 1 | $0.95 | |
| 25 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 26 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 27 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 28 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 31 | 4718-158 | PLATE,SKID-BLK-RH W/FOAM (DSI) | 1 | $192.95 | |
| 32 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 33 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 34 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 35 | 2612-970 | R/B 3612-327 | 1 | $16.95 | |
| 36 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 37 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 38 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 39 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 40 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 41 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 42 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 43 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 44 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 45 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 46 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 47 | 2612-972 | PLATE,EXHAUST OUTLET | 1 | $15.11 | |
| 48 | 2612-971 | SEAL,EXHAUST OUTLET-CWI | 1 | $38.95 | |
| 49 | 1712-963 | DEFLECTOR,EXHAUST OUTLET-PTD BLK | 1 | $32.95 | |
| 50 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 51 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 52 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 53 | 0730-202 | ECU,PROGRAMMED-2 STRK-9T/2.86P | 1 | $1,865.95 | |
| 54 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 55 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 56 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 56 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 57 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 58 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 59 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
