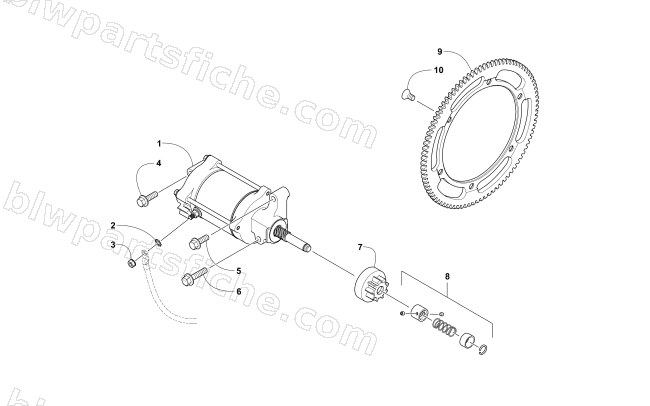

2015 Arctic Cat XF 6000 CROSS-TOUR 141 — STARTER MOTOR ASSEMBLY
2015 XF 6000 CROSS-TOUR 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-396 | STARTER,ELECTRIC - ASSY | 1 | $571.95 | |
| 2 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 5 | 8412-841 | SCREW,CAP-HFH M8X1.25X40 CL8.8 W/2353 | 1 | $4.26 | |
| 7 | 0645-713 | R/B 0645-853 | 1 | $159.95 | |
| 8 | 0745-398 | STOPPER,PINION-KIT | 1 | $43.95 | |
| 9 | 0745-403 | RING GEAR,ELECTRIC START-TREATED-CWI | 1 | $151.95 | |
| 10 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
