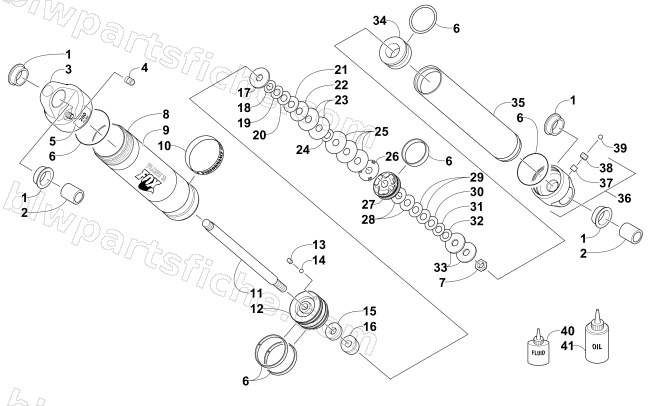

2015 Arctic Cat M 7000 SNO PRO — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2015 M 7000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-567 | R/B 2704-603 | 1 | $369.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 4604-006 | CAP,BODY-FLOAT SIDE PORT-ASSY | 1 | $267.95 | |
| 4 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 5 | 3603-419 | DECAL,AIR PRESSURE 200PSI | 1 | $12.35 | |
| 6 | 3603-293 | KIT,REBUILD-SEAL/BEARING | 1 | $110.95 | |
| 7 | 3603-018 | NUT,LOCK,3/8-24THDX.562 FLATS | 1 | $2.95 | |
| 8 | 4604-009 | SLEEVE,FLOAT-DUAL WIPER-7.70"TLG-ASSY | 1 | $297.95 | |
| 9 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 10 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 11 | 3603-364 | SHAFT,CHROME-.498 OD X 8.30" TLG | 1 | $37.95 | |
| 12 | 3603-291 | BEARING ASSY-1.834" BORE,.498" X 1.388" | 1 | $216.95 | |
| 13 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 14 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 15 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 16 | 4604-008 | SPACER,SHAFT-.500 ID X 1.100 OD X .500" | 1 | $12.95 | |
| 17 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 18 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 20 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 21 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 22 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 23 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 24 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 25 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 26 | 3603-344 | VALVE, DB 3 PORT-1.300OD X.375IDX.008THK | 1 | $8.95 | |
| 27 | 3603-397 | PISTON,DAMPING-1.459 BORE-3 PORT | 1 | $167.95 | |
| 28 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 29 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 30 | 0603-880 | VALVE, SHOCK .900 X.012(040-12-090) | 1 | $12.95 | |
| 31 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 32 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 33 | 2604-966 | WASHER,TOP OUT-.950OD X .378ID X .050TH | 1 | $4.95 | |
| 34 | 3603-023 | PISTON,FLOATING-1.459 BORE-NYLON-ASSY | 1 | $55.95 | |
| 35 | 3604-999 | BODY,SHOCK-1.459 BORE X 7.70" TLG | 1 | $85.95 | |
| 36 | 3603-332 | BODY,CAP-1.459"-PELLET PORT-ASSY | 1 | $167.95 | |
| 37 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 38 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 39 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 40 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 41 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
