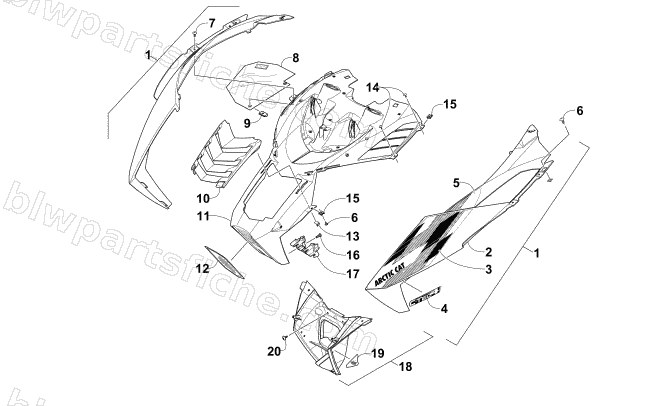

2015 Arctic Cat M 7000 SNO PRO — HOOD ASSEMBLY
2015 M 7000 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-340 | HOOD,TA GRN-W/DECAL-RH (M7) | 1 | $194.95 | |
| 1 | 4718-341 | HOOD,TA GRN-W/DECAL-LH (M7) | 1 | $194.95 | |
| 2 | 6606-516 | HOOD,MAIN-RH-TEAM ARCTIC GREEN | 1 | $154.95 | |
| 2 | 6606-517 | HOOD,MAIN-LH-TEAM ARCTIC GREEN | 1 | $154.95 | |
| 3 | 1621-420 | DECAL,HOOD-FWD-RH (M GRN) | 1 | $57.95 | |
| 3 | 1621-421 | DECAL,HOOD-FWD-LH (M GRN) | 1 | $57.95 | |
| 4 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 5 | 1621-422 | DECAL,HOOD-REAR-RH (M GRN) | 1 | $4.68 | |
| 5 | 1621-423 | DECAL,HOOD-REAR-LH (M GRN) | 1 | $4.68 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 8 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 9 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 10 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 11 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 12 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 13 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 16 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 17 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 18 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 19 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 20 | 1623-129 | R/B 2623-166 | 1 | $0.35 |
