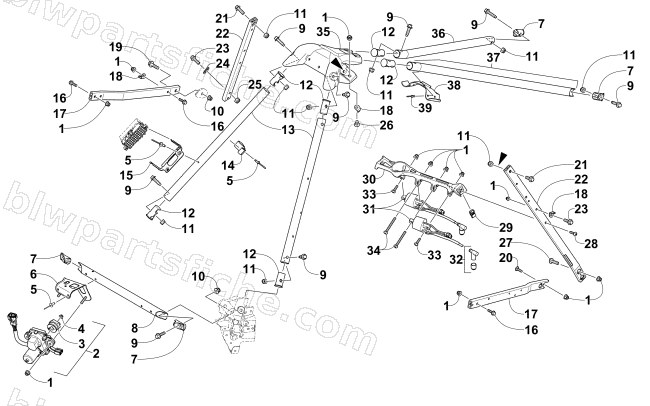

STEERING SUPPORT ASSEMBLY
2015 M 6000 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 0902-012 | ACTUATOR ASSY, EXHAUST VALVE | 1 | $715.95 | |
| 3 | 0902-019 | PULLEY,CONTROLLER | 1 | $54.95 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 4706-845 | BRKT,MTG-SERVO MOTOR-W/STUDS | 1 | $113.95 | |
| 7 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 8 | 1707-582 | TUBE,SUPPORT-SHOCK TOWER-PTD BLK | 1 | $19.95 | |
| 9 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 | |
| 10 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 11 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 12 | 1607-094 | R/B 1607-747 | 1 | $4.95 | |
| 13 | 2707-424 | SPAR,UPR FRT-PTD BLK | 1 | $24.77 | |
| 14 | 1623-938 | CLAMP,THROTTLE/FUEL LINE | 1 | $2.47 | |
| 15 | 0645-653 | BRACKET,PDM | 1 | $20.63 | |
| 16 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 17 | 0607-248 | SPAR,SIDE-RH-2 STROKE | 1 | $54.95 | |
| 17 | 1607-368 | SPAR, SIDE-LH | 1 | $68.95 | |
| 18 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 19 | 8408-885 | SCREW,CAP-HFH M8X1.25X85 CL8.8 Z&Y | 1 | $2.75 | |
| 20 | 1623-917 | BOLT,CARRIAGE-M6X1.0X20 Z&Y CL 8.8 | 1 | $0.95 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 0607-252 | SUPPORT,STEERING-RH | 1 | $77.95 | |
| 22 | 1607-581 | SUPPORT,STEERING-LH | 1 | $45.95 | |
| 23 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 24 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 25 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 26 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 27 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 28 | 8476-626 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y W/2353 | 1 | $1.23 | |
| 29 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 30 | 0708-626 | BRKT,MTG-COIL-W/BUSHING | 1 | $38.95 | |
| 31 | 0902-034 | COIL ASSY,IGNITION W/CAP (180MM) | 1 | $109.95 | |
| 32 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 33 | 8468-640 | SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLK | 1 | $0.68 | |
| 34 | 8468-650 | SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK | 1 | $1.78 | |
| 35 | 1707-570 | SUPPORT,STEERING-PTD BLK | 1 | $189.95 | |
| 36 | 1707-566 | SPAR,REAR-RH-PTD BLK | 1 | $74.95 | |
| 37 | 5706-225 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $34.95 | |
| 38 | 6606-391 | BRKT,HOLDOWN-SEATBASE | 1 | $13.73 | |
| 39 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
