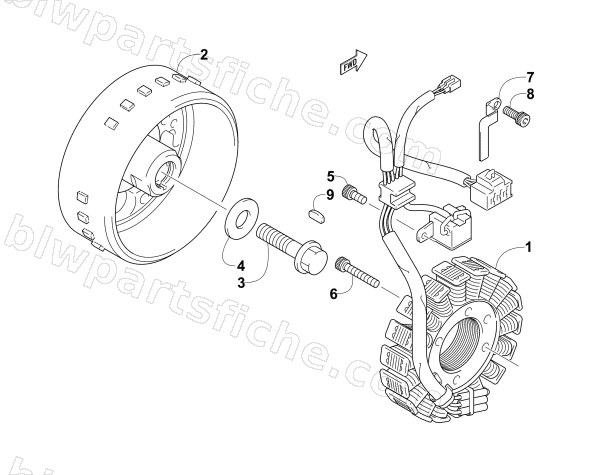

2015 Arctic Cat BEARCAT 5000 XT GS — MAGNETO ASSEMBLY
2015 BEARCAT 5000 XT GS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-231 | STATOR ASSY | 1 | $515.95 | |
| 2 | 3007-232 | ROTOR ASSY | 1 | $1,164.95 | |
| 3 | 3007-233 | BOLT,FLYWHEEL (12X40) | 1 | $3.44 | |
| 4 | 3007-234 | WASHER,FLYWHEEL (12X30X3) | 1 | $3.95 | |
| 5 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 6 | 3007-450 | BOLT | 1 | $3.85 | |
| 7 | 3007-235 | CLAMP,LEAD WIRE | 1 | $8.21 | |
| 9 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
