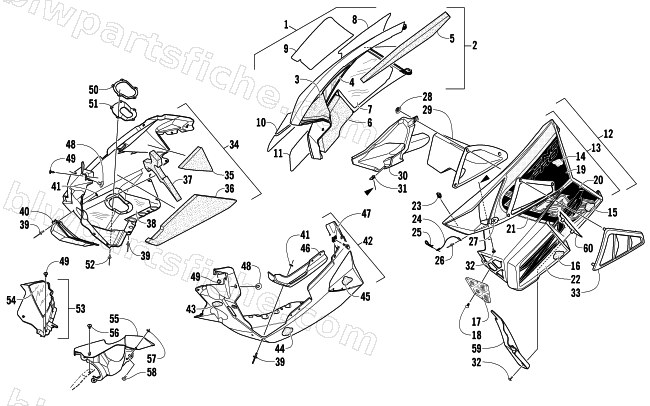

SKID PLATE AND SIDE PANEL ASSEMBLY
2014 ZR 9000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-868 | PANEL,SIDE-RH GRN W/DECAL(ZR9 SP GRN) | 1 | $244.95 | |
| 1 | 3718-854 | PANEL,SIDE-RH ORN-W/DECALS(ZR SP ORN) | 1 | $323.95 | |
| 2 | 3718-860 | PANEL,SIDE-RH W/FOAM-TA GRN (4 STROKE) | 1 | $164.95 | |
| 2 | 3718-856 | PANEL,SIDE-RH W/FOAM-ORN-ASSY (4 STRK) | 1 | $274.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 0621-678 | DECAL,SIDE PANEL-UPR RH (SP GRN) | 1 | $43.95 | |
| 8 | 0621-696 | DECAL,SIDE PANEL-UPR RH (SP ORN) | 1 | $43.95 | |
| 9 | 0621-682 | DECAL,SIDE PANEL-LWR-RH "ZR" (SP GRN) | 1 | $29.95 | |
| 9 | 0621-702 | DECAL,SIDE PANEL-LWR RH "ZR" (SP ORN) | 1 | $29.95 | |
| 10 | 0621-680 | DECAL,SIDE PANEL-MID RH (SP GRN) | 1 | $13.73 | |
| 10 | 0621-698 | DECAL,SIDE PANEL-MID RH (SP ORN) | 1 | $13.73 | |
| 11 | 0621-684 | DECAL,SIDE PANEL-FWD RH-"ZR" (SP GRN) | 1 | $26.95 | |
| 11 | 0621-700 | DECAL,SIDE PANEL-FWD RH-"ZR" (SP ORN) | 1 | $26.95 | |
| 12 | 3718-869 | PANEL,SIDE-LH GRN W/DECAL(ZR9 SP GRN) | 1 | $323.95 | |
| 12 | 3718-337 | PANEL,SIDE-LH ORN W/DECAL(ZR9 SP ORN) | 1 | $359.95 | |
| 13 | 3718-861 | PANEL,SIDE-LH W/FOAM-TA GRN (TURBO) | 1 | $274.95 | |
| 13 | 3718-867 | PANEL,SIDE-LH ORN-W/FOAM (TURBO) | 1 | $274.95 | |
| 14 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 18 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 19 | 0621-201 | DECAL,SIDE PANEL-UPR LH (TURBO SP GRN) | 1 | $57.95 | |
| 19 | 0621-693 | DECAL,SIDE PANEL-UPR LH (TURBO SP ORN) | 1 | $57.95 | |
| 20 | 0621-683 | DECAL,SIDE PANEL-LWR-LH "ZR"(SP GRN) | 1 | $29.95 | |
| 20 | 0621-703 | DECAL,SIDE PANEL-LWR LH "ZR" (SP ORN) | 1 | $29.95 | |
| 21 | 0621-681 | DECAL,SIDE PANEL-MID LH (SP GRN) | 1 | $13.73 | |
| 21 | 0621-699 | DECAL,SIDE PANEL-MID LH (SP ORN) | 1 | $13.73 | |
| 22 | 0621-685 | DECAL,SIDE PANEL-FWD LH-"ZR" (SP GRN) | 1 | $26.95 | |
| 22 | 0621-701 | DECAL,SIDE PANEL-FWD LH-"ZR" (SP ORN) | 1 | $26.95 | |
| 23 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 24 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 25 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 26 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 27 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 28 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 29 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 30 | 2602-457 | DUCT,BELT COOLING-4 STRK | 1 | $46.95 | |
| 31 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 32 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 33 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 34 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 35 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 36 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 37 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 38 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 39 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 40 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 41 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 42 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 43 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 44 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 45 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 46 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 47 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 48 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 49 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 50 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 51 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 52 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 53 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 54 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 55 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 56 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 57 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 58 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 59 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 60 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 |
