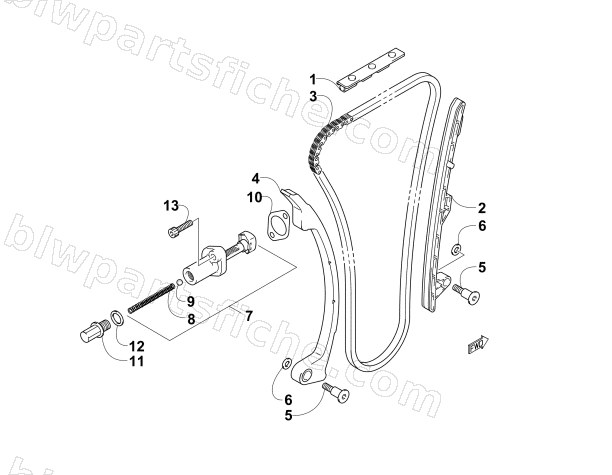

2014 Arctic Cat ZR 9000 LXR — CAM CHAIN ASSEMBLY
2014 ZR 9000 LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-141 | GUIDE,CAM CHAIN NO.2 | 1 | $66.95 | |
| 2 | 3007-140 | GUIDE,CAM CHAIN NO.1 | 1 | $66.95 | |
| 3 | 3007-139 | CHAIN,CAMSHAFT DRIVE | 1 | $248.95 | |
| 4 | 3007-142 | TENSIONER,CAM CHAIN | 1 | $126.95 | |
| 5 | 3007-143 | BOLT,CAM CHAIN TENSIONER & GUIDE | 1 | $13.73 | |
| 6 | 3007-418 | WASHER | 1 | $2.95 | |
| 7 | 3007-144 | ADJUSTER ASSY,TENSIONER | 1 | $318.95 | |
| 8 | 3007-145 | SPRING | 1 | $16.95 | |
| 9 | 3007-146 | BALL | 1 | $13.73 | |
| 10 | 3007-147 | GASKET,TENSIONER ADJUSTER | 1 | $6.47 | |
| 11 | 3007-148 | BOLT,ADJUSTER SPRING | 1 | $13.73 | |
| 12 | 3530-047 | GASKET,WATER TEMP SENSOR | 1 | $4.40 | |
| 13 | 3007-509 | BOLT,TENSIONER ADJUSTER | 1 | $3.95 |
