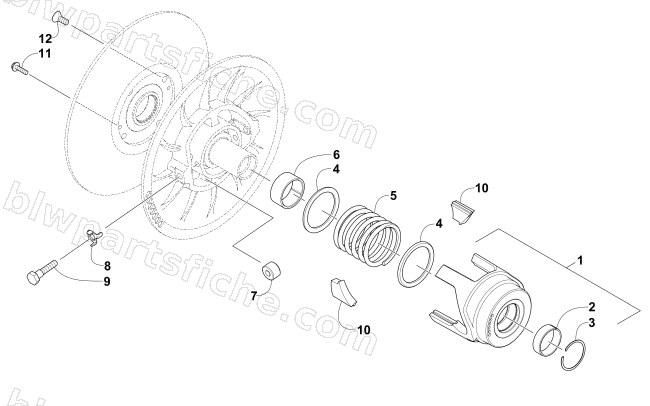

2014 Arctic Cat ZR 8000 SNO PRO RR NORWAY EDITION — DRIVEN CLUTCH
2014 ZR 8000 SNO PRO RR NORWAY EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-340 | CLUTCH,DRIVEN-44/40 202-284 BLUE-2 STRK | 1 | $735.95 | |
| 1 | 0748-771 | CAM,DRIVEN-44/40 MACH | 1 | $150.95 | |
| 1 | 0748-770 | CAM,DRIVEN-36 MACH | 1 | $197.95 | |
| 2 | 0648-831 | BEARING,INNER-MACH | 1 | $33.95 | |
| 3 | 0648-811 | RING,SNAP-43mm | 1 | $2.06 | |
| 4 | 0648-810 | SEAT, SPRING-DRIVEN | 1 | $17.87 | |
| 5 | 0648-813 | SPRING,DRIVEN-202-284 BLUE | 1 | $20.63 | |
| 6 | 0648-827 | SPACER,DRIVEN | 1 | $12.35 | |
| 7 | 0648-824 | ROLLER,DRIVEN-TORLON | 1 | $27.95 | |
| 8 | 0648-800 | WASHER,TAB LOCK-10MM | 1 | $1.23 | |
| 9 | 0648-799 | SCREW,CAM ROLLER-M10X1.5-40 CL 8.8 | 1 | $4.40 | |
| 10 | 0648-826 | CAM,BACK-2 STRK | 1 | $3.99 | |
| 11 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 12 | 2623-050 | SCREW,MACH-TSFH-M8X1.25X25 10.9-RIE SIL | 1 | $8.21 |
