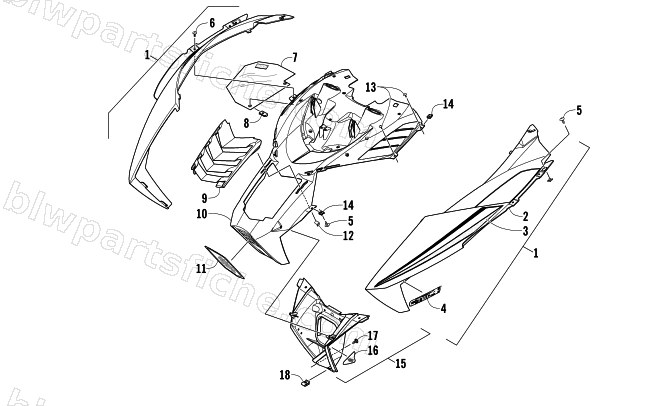

2014 Arctic Cat ZR 7000 LXR — HOOD ASSEMBLY
2014 ZR 7000 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-828 | HOOD,MAIN-RH BLK-W/DECAL (ZR LXR BLK) | 1 | $139.95 | |
| 1 | 3718-829 | HOOD,MAIN-LH BLK-W/DECAL (ZR LXR BLK) | 1 | $139.95 | |
| 2 | 6606-318 | HOOD,MAIN-RH-BLK | 1 | $116.95 | |
| 2 | 3718-313 | HOOD,W/FOIL-LH-BLK | 1 | $159.95 | |
| 3 | 0621-634 | DECAL,HOOD-RH (LXR BLK) | 1 | $38.95 | |
| 3 | 0621-635 | DECAL,HOOD-LH (LXR BLK) | 1 | $38.95 | |
| 4 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 5 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 1712-899 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 8 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 9 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 10 | 6606-510 | PLENUM,AIR INTAKE-UPPER-ROUTED | 1 | $228.95 | |
| 11 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 12 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 15 | 5706-992 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(7) | 1 | $77.95 | |
| 16 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
