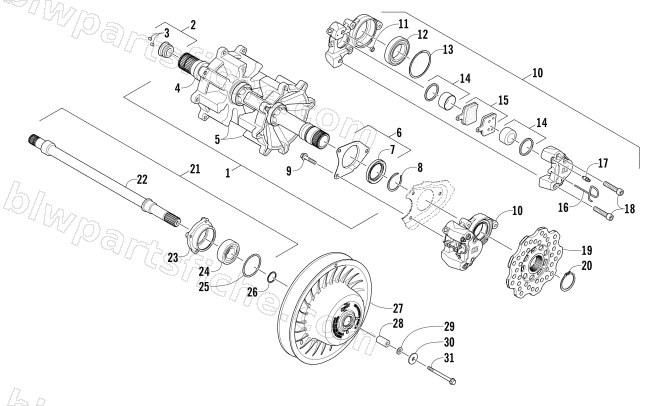

2014 Arctic Cat ZR 6000 SNO PRO R — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2014 ZR 6000 SNO PRO R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-216 | TRACK DRIVE,8T 2.86P RACE-ASSY | 1 | $540.95 | |
| 2 | 1702-243 | PLUG,DRIVE SHAFT-W/MAGNETS | 1 | $50.95 | |
| 4 | 2602-706 | SHAFT,DRIVE-HEX-45MM RACE | 1 | $319.95 | |
| 5 | 2602-755 | R/B 2602-911 | 1 | $90.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 10 | 2602-752 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $352.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-643 | KIT,PISTONS/SEALS | 1 | $92.95 | |
| 15 | 2602-590 | R/B 3602-017 | 1 | $132.95 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-644 | BOLT,BRAKE CALIPER-1/2" | 1 | $30.95 | |
| 19 | 2602-720 | DISK,BRAKE-FORGED-34T SPLINED-MACH | 1 | $240.95 | |
| 20 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 21 | 1702-324 | SHAFT,DRIVEN-W/BEARING-ASSY | 1 | $224.95 | |
| 23 | 2602-422 | HUB,BEARING HOUSING-MACH | 1 | $34.95 | |
| 24 | 2602-247 | BEARING,30 X 62 X 20 - 2206 -2RS | 1 | $20.63 | |
| 25 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 0726-329 | CLUTCH,DRIVEN-BLK/ORN-70-44-32/68-42-32 | 1 | $749.95 | |
| 28 | 0648-819 | SHAFT,STUB-DRIVEN | 1 | $34.95 | |
| 29 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 31 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 |
