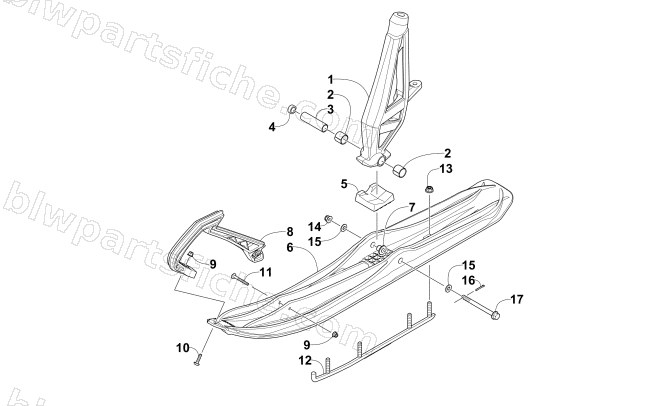

SKI AND SPINDLE ASSEMBLY
2014 ZR 6000 EL TIGRE ES
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-184 | SPINDLE,RH-TEAM ARC GRN-FABR | 1 | $320.95 | |
| 1 | 3703-185 | SPINDLE,LH-TEAM ARC GRN-FABR | 1 | $320.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 4 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 5 | 3603-237 | DAMPER,SKI-RUBBER | 1 | $19.25 | |
| 6 | 3603-234 | SKI,BLK-PLASTIC-152.4MM (6")-4 HOLE | 1 | $118.95 | |
| 7 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 8 | 3603-228 | HANDLE,PLASTIC SKI-TEAM ARC GRN | 1 | $33.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 11 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 12 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 13 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 14 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 15 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 16 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 17 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 |
