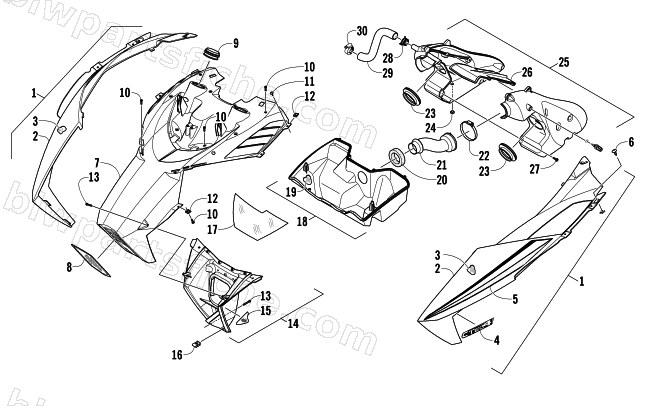

2014 Arctic Cat ZR 5000 LXR — HOOD AND AIR INTAKE ASSEMBLY
2014 ZR 5000 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-840 | HOOD,BLK-RH W/DECALS (LXR BLK) | 1 | $177.95 | |
| 1 | 3718-841 | HOOD,BLK-LH W/DECALS (LXR BLK) | 1 | $177.95 | |
| 1 | 3718-838 | HOOD,TA GRN-RH W/DECALS (FZ1 LXR GRN) | 1 | $181.95 | |
| 1 | 3718-839 | HOOD,TA GRN-LH W/DECALS (FZ1 LXR GRN) | 1 | $181.95 | |
| 2 | 3718-486 | HOOD,W/FOIL-4 STRK RH-BLK | 1 | $150.95 | |
| 2 | 3718-313 | HOOD,W/FOIL-LH-BLK | 1 | $159.95 | |
| 2 | 3718-264 | HOOD,W/FOIL-4 STRK TEAM ARCTIC GREEN | 1 | $156.95 | |
| 2 | 3718-837 | HOOD,W/FOIL-TA GRN | 1 | $156.95 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 4 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 5 | 0621-634 | DECAL,HOOD-RH (LXR BLK) | 1 | $38.95 | |
| 5 | 0621-635 | DECAL,HOOD-LH (LXR BLK) | 1 | $38.95 | |
| 5 | 0621-650 | DECAL,HOOD-RH (LXR GRN) | 1 | $39.95 | |
| 5 | 0621-651 | DECAL,HOOD-LH (LXR GRN) | 1 | $39.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 6606-383 | PLENUM,AIR INTAKE COVER-UPPER-N/A | 1 | $200.95 | |
| 8 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 9 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 10 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 11 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 12 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 13 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 14 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 15 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 18 | 5706-372 | PLENUM,INTAKE-LWR-REAR-ASSY | 1 | $88.95 | |
| 19 | 6606-419 | FOIL,INTAKE PLENUM-LOWER-NA | 1 | $16.49 | |
| 20 | 0617-644 | SEAL,FOAM-AIR SILENCER | 1 | $3.02 | |
| 21 | 2670-164 | BOOT,SILENCER AIR INTAKE (Z1 NA) | 1 | $92.95 | |
| 22 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 23 | 2670-161 | BOOT,THROTTLE BODY (Z1 NA) | 1 | $20.63 | |
| 24 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 25 | 2670-160 | SILENCER,AIR ASSY-4 STRK (NA) | 1 | $120.95 | |
| 26 | 2670-183 | BAFFLE,AIR SILENCER | 1 | $20.63 | |
| 27 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 28 | 1623-229 | CLAMP,SCREW-#012 | 1 | $3.85 | |
| 29 | 0610-852 | HOSE,BREATHER-VENT-N/A | 1 | $20.63 | |
| 30 | 1623-291 | CLAMP,HOSE-SPRING (12W X 28) | 1 | $3.57 |
