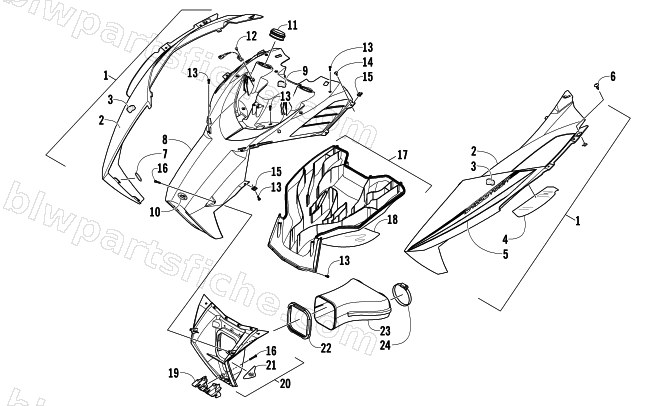

2014 Arctic Cat XF 8000 141 CROSS-TOUR — HOOD AND AIR INTAKE ASSEMBLY
2014 XF 8000 141 CROSS-TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-934 | HOOD,W/DECALS-RH-BLK (XF8 CT) | 1 | $174.95 | |
| 1 | 3718-935 | HOOD,W/DECALS-LH-BLK (XF8 CT) | 1 | $174.95 | |
| 1 | 3718-936 | HOOD,W/DECALS-RH-ORN (XF8 CT) | 1 | $210.95 | |
| 1 | 3718-937 | HOOD,W/DECALS-LH-ORN (XF8 CT) | 1 | $210.95 | |
| 2 | 3718-588 | HOOD,W/FOAM-RH-BLK | 1 | $124.95 | |
| 2 | 3718-589 | HOOD,W/FOAM-LH-BLK | 1 | $124.95 | |
| 2 | 3718-590 | HOOD,W/FOAM-RH-ORN | 1 | $185.95 | |
| 2 | 3718-591 | HOOD,W/FOAM-LH-ORN | 1 | $197.95 | |
| 3 | 0617-646 | FOAM,HOOD-RH | 1 | $13.73 | |
| 3 | 0617-647 | FOAM,HOOD-LH | 1 | $24.77 | |
| 4 | 6606-407 | FOIL,PROTECTIVE-HOOD-LH | 1 | $2.61 | |
| 5 | 0621-712 | DECAL,HOOD-RH-BLK (XF CT) | 1 | $32.95 | |
| 5 | 0621-713 | DECAL,HOOD-LH-BLK (XF CT) | 1 | $32.95 | |
| 5 | 0621-714 | DECAL,HOOD-RH-ORN (XF CT) | 1 | $43.95 | |
| 5 | 0621-715 | DECAL,HOOD-LH-ORN (XF CT) | 1 | $43.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1623-960 | O-RING,1 1/16 ID X 1 1/4 OD | 1 | $1.37 | |
| 8 | 5706-356 | PLENUM,INTAKE-UPPER W/FOAM | 1 | $191.95 | |
| 9 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 10 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 11 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 12 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 13 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 16 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 17 | 5706-358 | PLENUM,INTAKE-LOWER REAR W/FOIL | 1 | $167.95 | |
| 18 | 6606-406 | FOIL,PROTECTIVE-PLENUM | 1 | $3.57 | |
| 19 | 6606-822 | RETAINER,LOWER PLENUM | 1 | $13.73 | |
| 20 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 21 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 22 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 23 | 2670-328 | BOOT,EXTENSION-EFI ASSY | 1 | $88.95 | |
| 24 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 |
